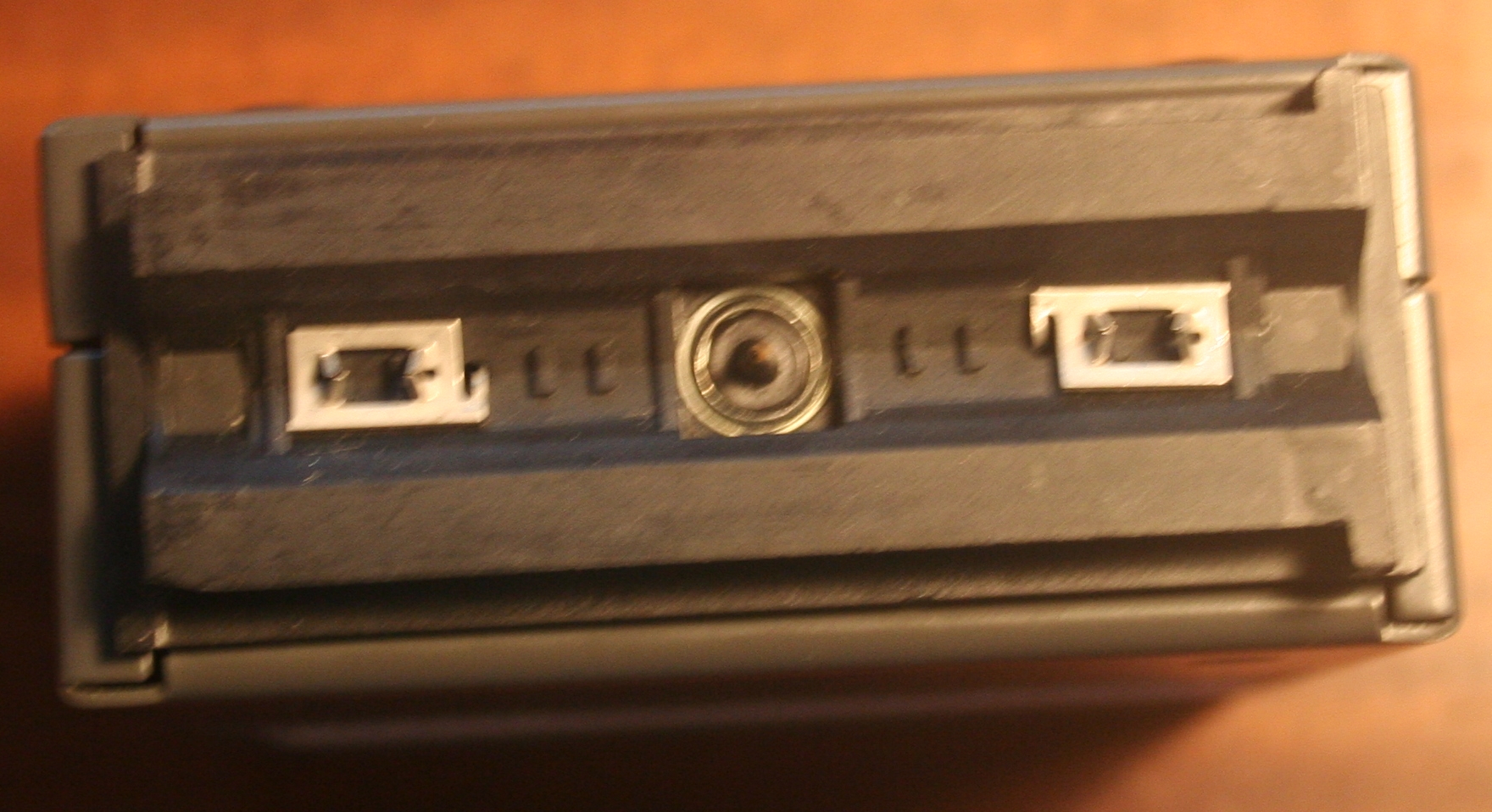

This is the bit that bites into the cable. You cant tell from this picture but the spike in the center is mostly insulated. Only the tip is exposed - this is to prevent it shoring the cables core with the shielding.
