| Aliases | |
| Date | 2001.02.27 |
| CPUs | 1 |
| Clock speed | 500 MHz |
| Processor | Superscalar SPARC V9 UltraSPARC IIe |
| Co-processor | |
| MMU | |
| Motherboard | |
| On-chip cache | |
| External cache | 256 KB L2 |
| Memory |
(4) memory slots, 2 GB max in 128 MB, 256 MB or 512 MB error correcting
SDRAM.
PC133 168-pin JEDEC DIMMs. DIMMs can be mixed and matched. |
| Speed | @ 500 MHz: 174 SPECint2000, 182 SPECfp2000 |
| Chassis type | desktop H: 118 mm (4.6 in) W: 445 mm (17.5 in) D: 464 mm (18.3 in), 15.4 kg (34 lb) |
| Bus | (3) PCI slots, 32 bit, 33 MHz, 5 / 3.3 volt. |

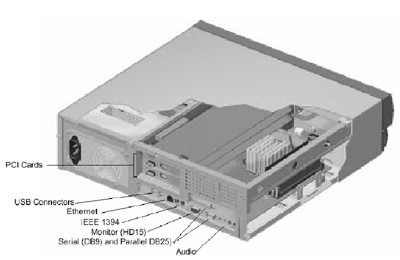

| Ports |
(1) 9 pin D-sub asynchronous serial port
(1) 25 pin D-sub IEEE 1294 bidirectional parallel port (4) type A USB ports. (2) 6 pin IEEE 1394 'firewire' interfaces. (4) audio ports (line-in / line-out / microphone-in / speaker-out) (1) 10/100 RJ45 port. |
| Internal storage | (2) EIDE drives |
| Graphics |
(1) onboard 24 bit PGX64 2D graphics, 1280 x 1024 @ 76 Hz
(2) Expert3D-Lite PCI cards. |
| Power supply | 100 - 120 volt; 220 - 240 VAC, 47 - 63 Hz, 0.3 KVA |
| Architecture | |
| OS's supported | Solaris 8 |
| Notes | |
| Comments | |
| See also.. |
Last modified: 2001.02.27.19.56.25 CST Server time: 2008.12.06.04.30.29 GMT
