| Aliases | |
| Date | |
| CPUs | 1 |
| Clock speed | 33 MHz |
| Processor | Motorola 68030 |
| Co-processor | Motorola 68882 |
| MMU | 68030 on-chip MMU |
| Motherboard | 501-1299, 501-1550 |
| On-chip cache | |
| External cache | 64 KB: 80ns cycle |
| Memory |
128 MB,
4 GB virtual
Uses ECC memory. Maximum of four 8 MB and/or 32 MB boards can be used. Uses same memory boards as 3/2xx. |
| Speed | 7 MIPS, 0.6 MFLOPS |

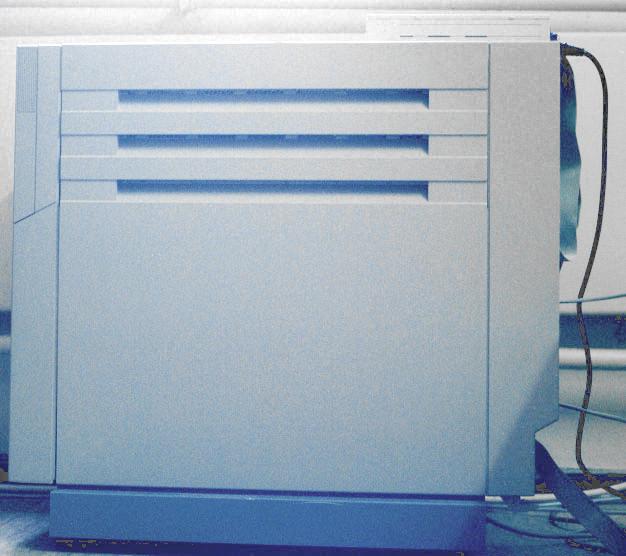

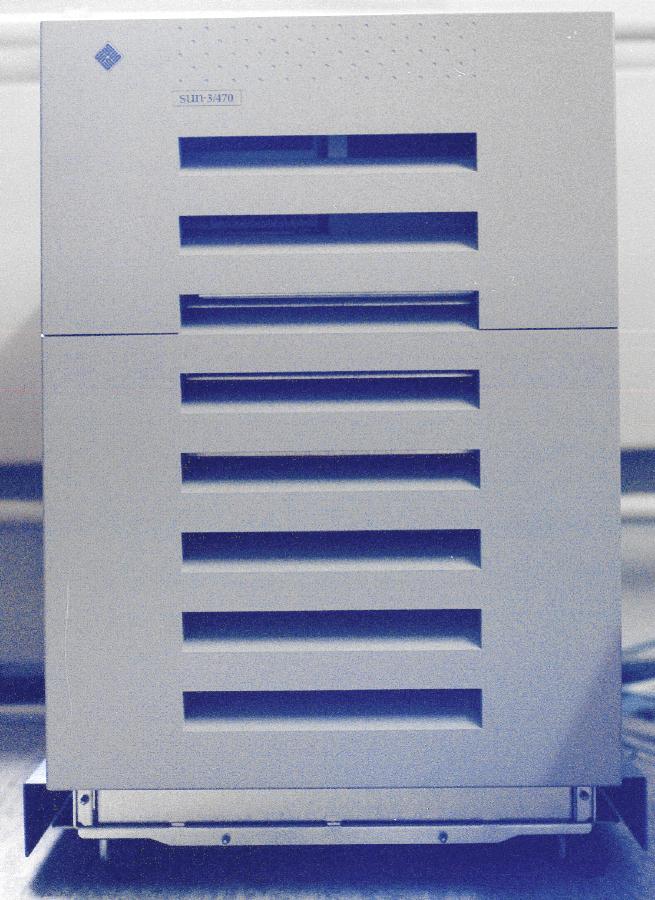

| Chassis type | deskside |

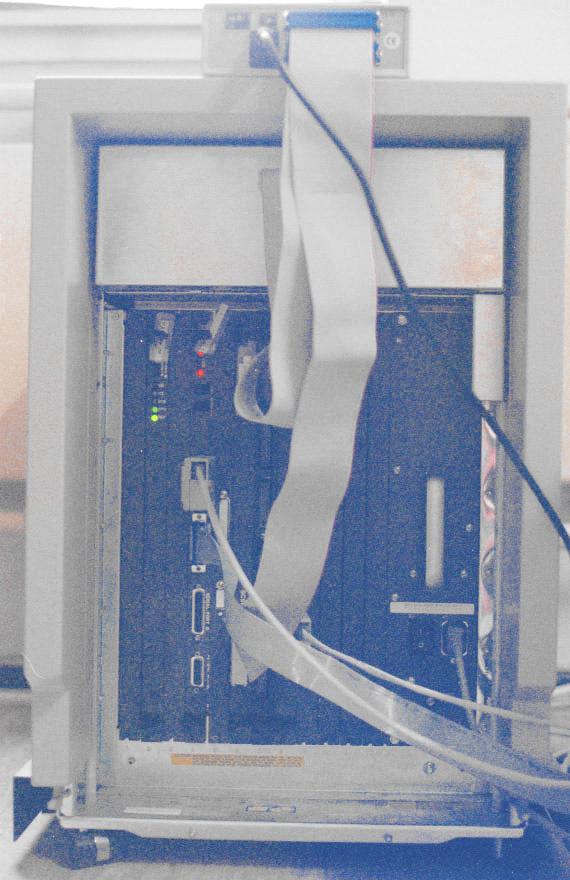

| Bus |
(12) VME slots,
board size 9U
P4 connector |
| Ports |
(1) AUI ethernet.
(2) serial ports. (1) keyboard and mouse. |
| Internal storage | In the upper third is a compartment for two disks (5.25" full height devices) and one tape drive or CD-ROM. |
| Graphics |
The motherboard does have a P4 slot which can hold a color or black & white graphics card (1152 x 900).
Color VME-Bus graphics cards can be used also. |
| Power supply | 1000 watt |
| Architecture | sun3x |
| OS's supported |
First supported in SunOS 3.0.
Last supported in SunOS 4.1.1U1. |
| Notes |
Code-named "Pegasus".
8 MB standard. Rare. |
| Comments | |
| See also.. |
