| Aliases | SPARCstation 2, 4/75 |
| Date | |
| CPUs | 1 |
| Clock speed | 40 MHz |
| Processor | CY7C601 |
| Co-processor | TI TMS390C601A (602A?) |
| MMU | Sun-4c, 16 hardware contexts |

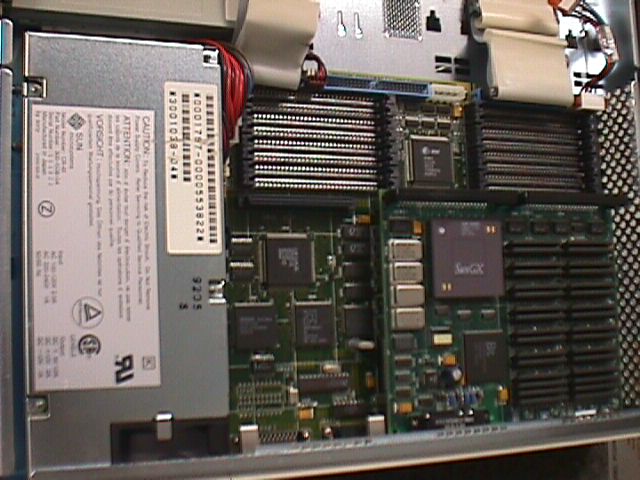

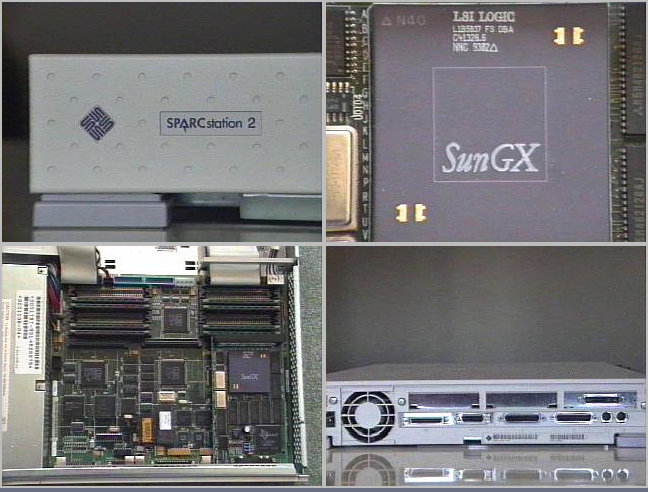

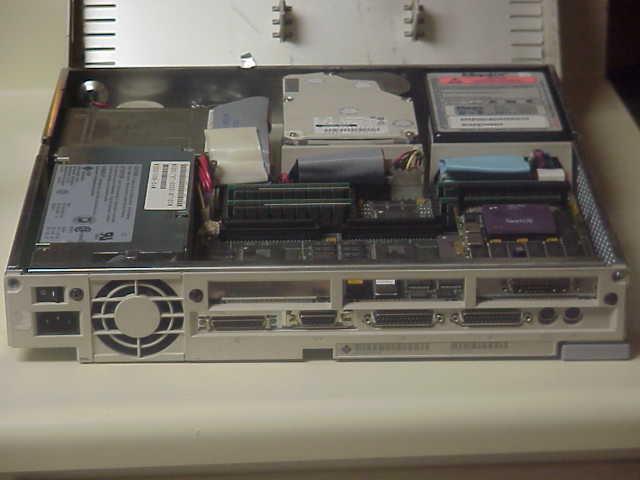

| Motherboard | 501-1638, 501-1744, 501-1858, 501-1859, 501-1912, 501-1926, 501-1989, 501-1995 |
| On-chip cache | |
| External cache | 64 KB: write-through, direct-mapped, virtually-indexed, virtually-tagged, 32-byte lines |
| Memory |
64 MB physical on motherboard / 128 MB total
4 MB x 9 30-pin 80ns SIMMs. Four banks. |
| Speed | 28.5 MIPS, 4.2 MFLOPS, 21.8 SPECintRate92, 541 SPECfpRate92 |

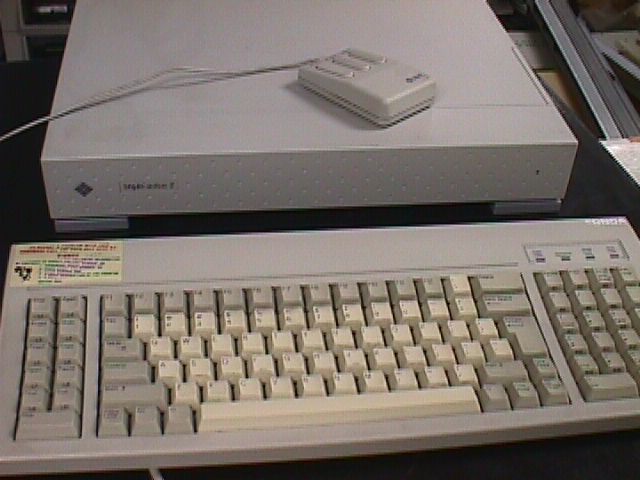

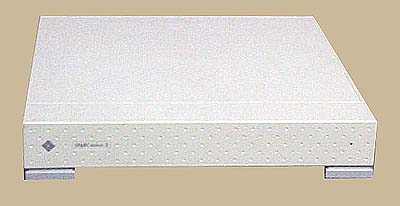

| Chassis type | pizzabox |

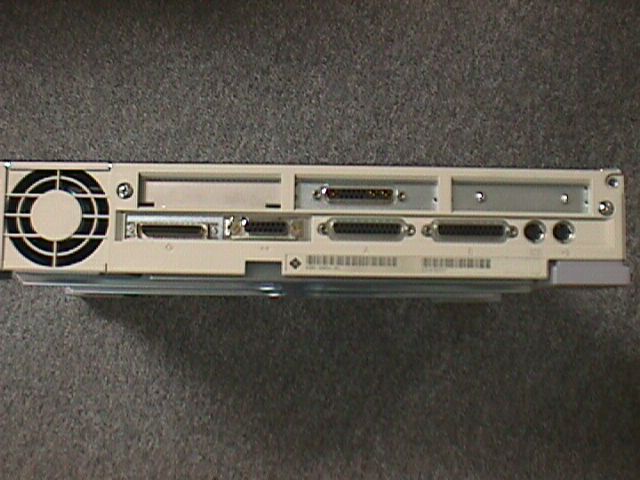

| Bus | (3) SBus slots: 20 MHz. |
| Ports | |
| Internal storage | |
| Graphics | |
| Power supply | |
| Architecture | sun4c |
| OS's supported | First supported in SunOS 4.1.1. |
| Notes |
Code name "Calvin".
Case slightly larger and has more ventilation. Some models apparently have LSI L64811 @ 40MHz? Expansion beyond 64 MB is possible with a 32 MB card which can take a 32 MB daughterboard (card blocks SBus slot). |
| Comments | |
| See also.. |
