| Aliases | SPARCstation LX, 4/30 |
| Date | |
| CPUs | 1 |
| Clock speed | 50 MHz |
| Processor | microSPARC |
| Co-processor | |
| MMU | |

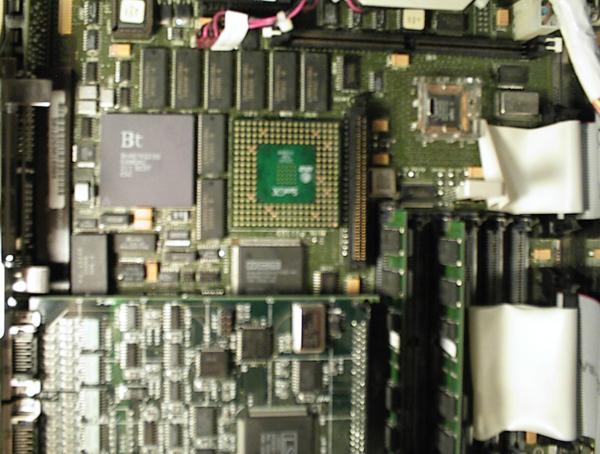

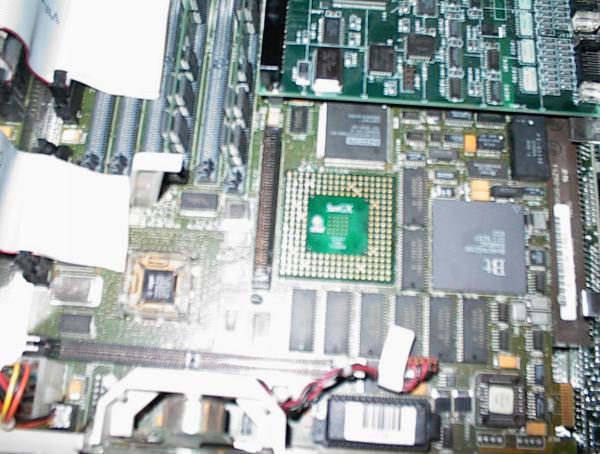

| Motherboard | 501-2031, 501-2032, 501-2233, 501-2474 |
| On-chip cache | |
| External cache | |
| Memory |
96 MB
Uses 4 MB or 16 MB 60ns parity SIMMs. Install in pairs. |
| Speed | 59.1 MIPS, 4.6 MFLOPS, 26.4 SPECint92, 21.0 SPECfp92, 626 SPECintRate92, 498 SPECfpRate92 |
| Chassis type | lunchbox |
| Bus | (2) Sbus slots: 20 MHz. |

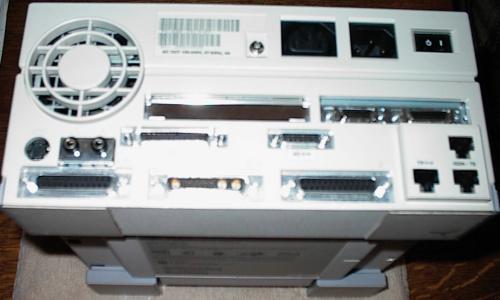

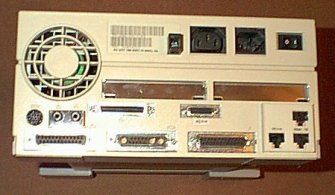

| Ports |
(1) SCSI.
(2) serial ports. (1) parallel port. (1) AUI or TP ethernet. (1) ISDN BRI interface. |
| Internal storage |
1.44 MB 3.5" floppy.
1 SCSI 1.0" or 1.6" form factor drive. |
| Graphics | Onboard CG6 color framebuffer, 1 MB VRAM standard, expandable to 2 MB. |
| Power supply | |
| Architecture | sun4m |
| OS's supported | First supported in SunOS 4.1.3c |
| Notes |
Shares code name "Sunergy" with SPARCclassic.
sun4m architecture, but no MBus, uniprocessor only. DBRI 16 bit audio/ISDN chip. |
| Comments | |
| See also.. |
