| Aliases | |
| Date | |
| CPUs | 1 |
| Clock speed | 143, 167, 200 MHz |
| Processor | Superscalar SPARC Version 9 UltraSPARC, Visual Instruction Set, |
| Co-processor | |
| MMU | 64 instruction TLB entries, 64 data TLB entries, 8192 hardware contexts. |
| Motherboard | |
| On-chip cache | 32 KB: 16 KB data, 16 KB instruction |
| External cache | 512 KB |
| Memory | 8 Memory Slots, 1 GB max in 32 MB, 64 MB or 128 MB SIMMS |
| Speed |
@ 143 MHz:
205 SPECint92,
300+ SPECfp92 (estimated)
@ 167 MHz: 250 SPECint92, 350+ SPECfp92 (estimated) |

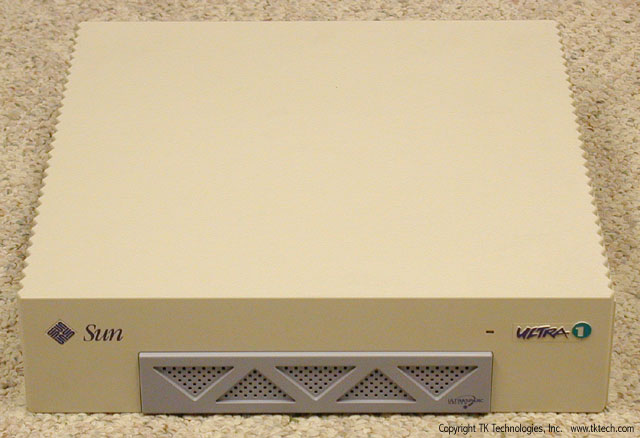

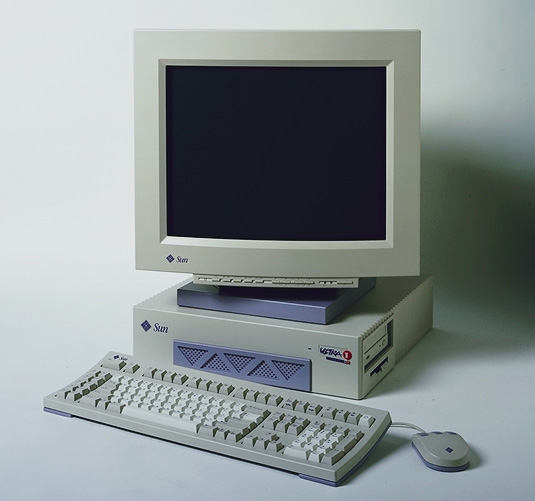

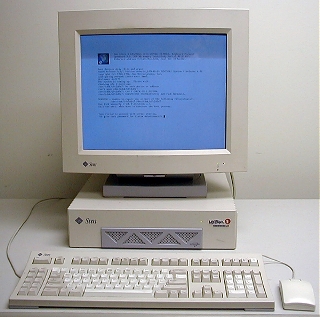

| Chassis type | desktop |
| Bus | (3) Sbus slots. (2) Sbus slots and (1) UPA slot in the 'E' series |

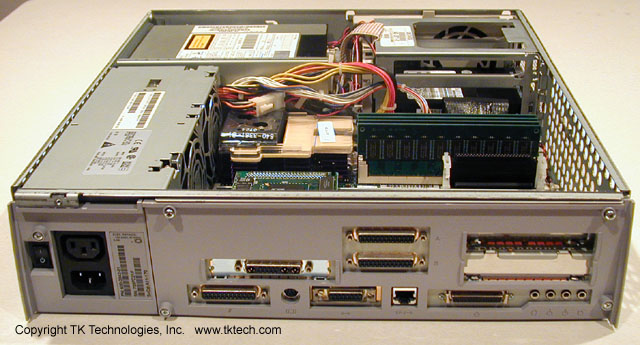

| Ports |
(2) Serial,
(1) Parallel, Fast SCSI-2 (E models have Fast/Wide SCSI), 10 base-T Ethernet (E models have 10/100baseT ethernet) |

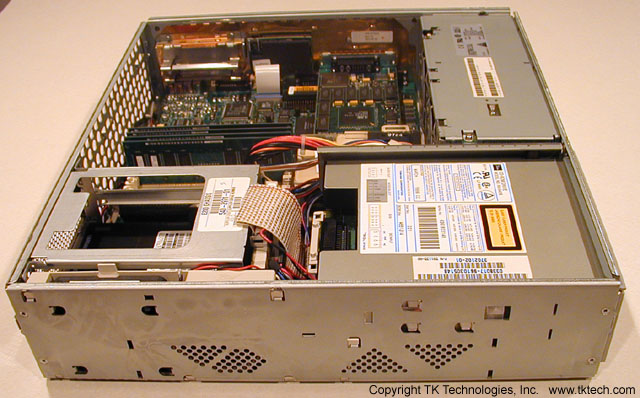

| Internal storage | Two disk bays will support low profile Fast Wide SCSI-2 disks |
| Graphics |
SBus - CG3, TX, TX4
UPA Bus - Creator, Creator 3D (To run the creator graphics system, the E Model is required. i.e. Ultra's 1/140E, 170E, 200E have the UPA slot necessary for creator graphics.) |
| Power supply | |
| Architecture | sun4u |
| OS's supported | Solaris 2.5.1 or greater |
| Notes | |
| Comments | |
| See also.. |
