| Aliases | |
| Date | |
| CPUs | 1 - 14 |
| Clock speed | 167, 250, 336, 400 MHz |
| Processor | Superscalar SPARC Version9, UltraSPARC |
| Co-processor | |
| MMU | |
| Motherboard | |
| On-chip cache | 32 KB: 16 KB instruction, 16 KB data |
| External cache | .5 1 or 4 MB / CPU |
| Memory |
256 MB - 14 GB
256 MB and 1 GB memory expansion options (each a group of 8 SIMMs). Up to two memory expansion options per board. |
| Speed | |

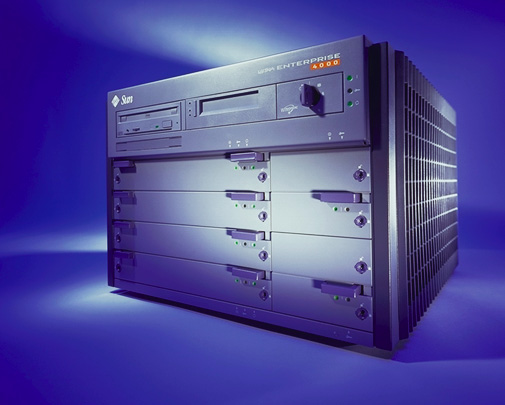

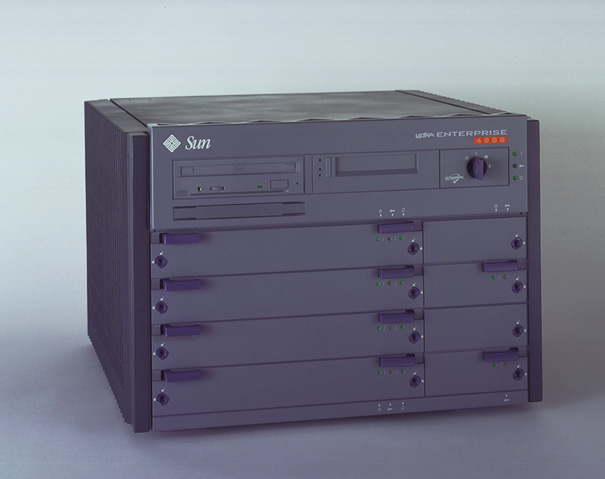

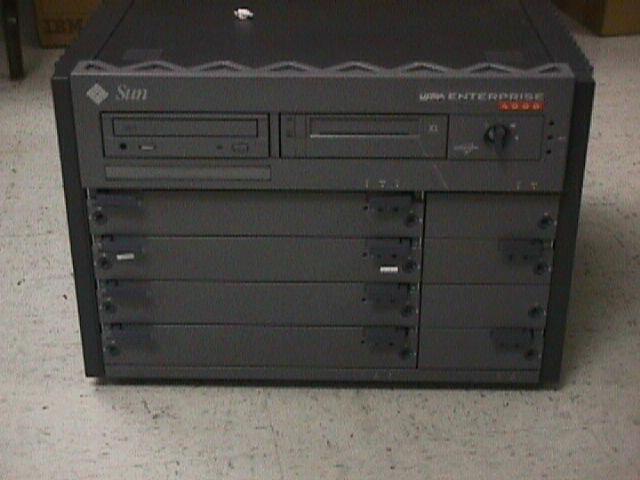

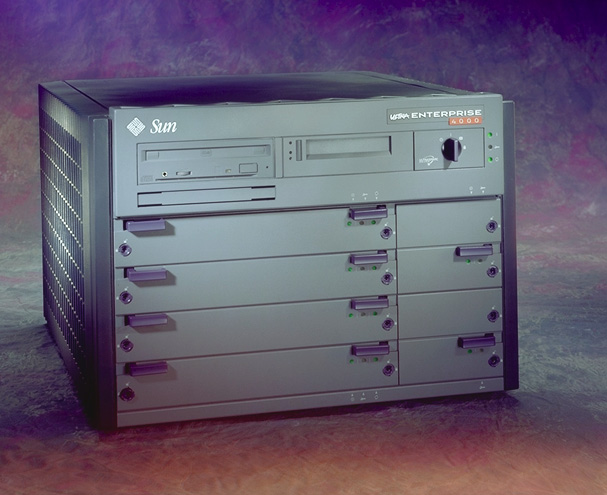

| Chassis type | rackmount, H: 34 cm (13.5 in.) W: 50 cm (19.7 in.) D: 56 cm (22.0 in.), 68 kg (150 lb.) approx. |
| Bus |
8 boards max.
Minimum configuration requires one CPU/Memory board and one I/O board.
CPU/Memory board: (2) processors slots, (16) memory SIMM slots. Sbus I/O board: (2) Sbus channels, (3) Sbus slots, Sbus Graphics I/O board: (1) Sbus channel, (2) Sbus slots, (1) UPA slot for Creator and Creator3D graphics, PCI I/O board: (4) PCI channels, (2) PCI slots, Sbus (64 bit data bus @ 25 MHZ). PCI (64 bit data bus @ 66 MHZ). 128 bit UPA CPU interface. |
| Ports |
Sbus I/O board:
(1) SunFastEthernet. (1) fast/wide SCSI. (2) fibre channel sockets. Sbus Graphics I/O board: (1) SunFast Ethernet. (1) fast/wide SCSI. (2) FC-AL sockets. PCI I/O board: (1) SunFastEthernet. (1) fast/wide SCSI. Clock board: (2) RS-232/423 ports. (1) keyboard/mouse port. |
| Internal storage |
(4) disk boards:
(2) 3.5" SCSI-2 disk drives, 1.0" form factor, (1) SunCD 12, (1) optional tape. |
| Graphics | TurboGX, TurboGXplus, Creator or Creator3D frame buffer |
| Power supply |
(4) 300 watt system power supplies.
(1) power supply required per two system boards. (1) 184 watt peripheral power supplies. Fully redundant power and cooling available on this system. |
| Architecture | sun4u |
| OS's supported | |
| Notes | |
| Comments | |
| See also.. | ULTRAEnterprise 4500 |
