Sun S24 AFX Video Card (TCX)

This is a 24bit frame buffer which goes in the AFX slot of a SPARCstation 5. The SPARCstation 4 has an 8-bit variant of this card onboard.

Links

• Sun System Handbook entry
• S24 Frame Buffer - Chapter 2 of the Solaris Handbook for Sun Frame Buffers. Lists supported resolutions, how to change the resolution, etc.

Photos

Photo	Title

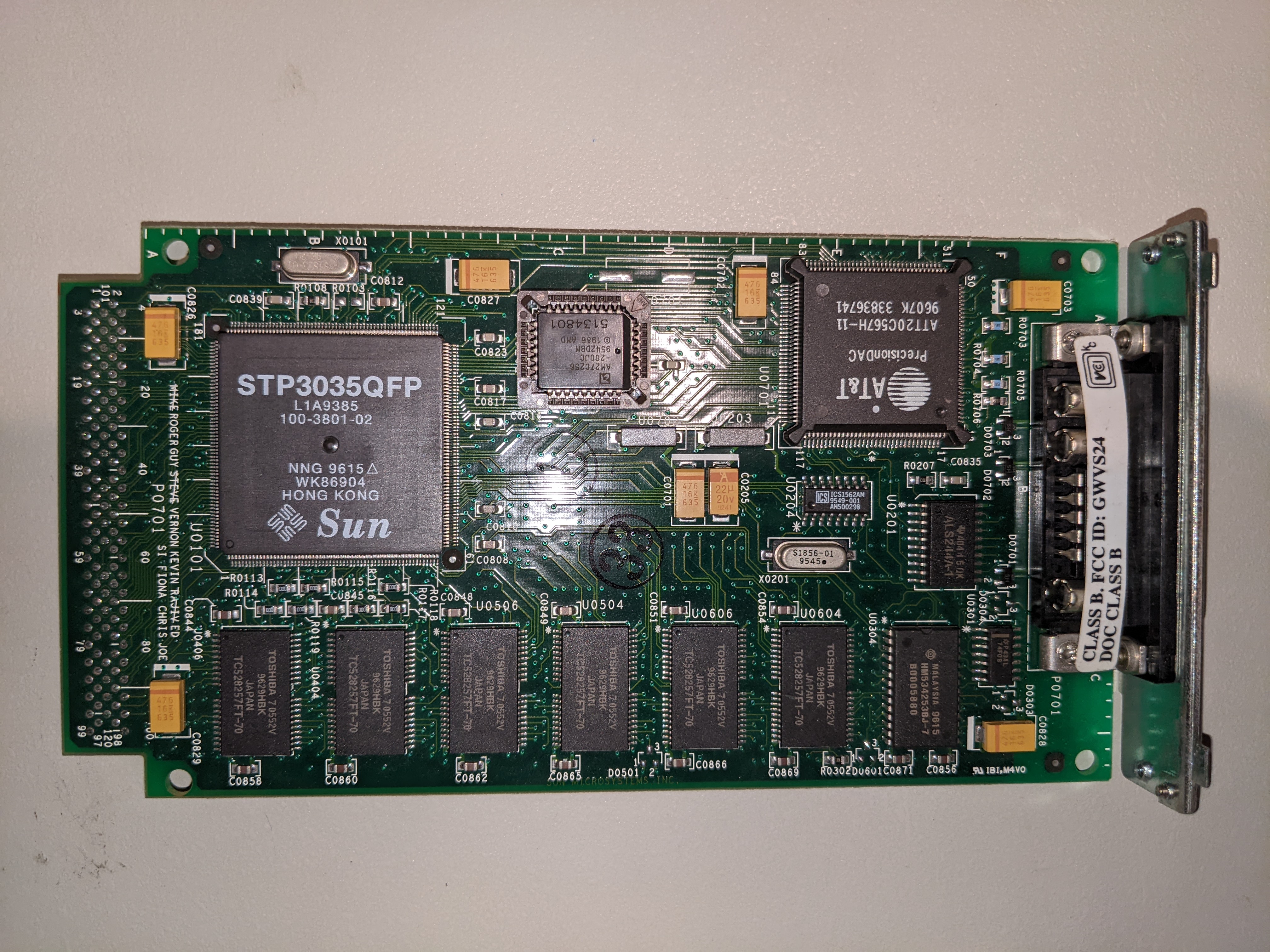

	Top

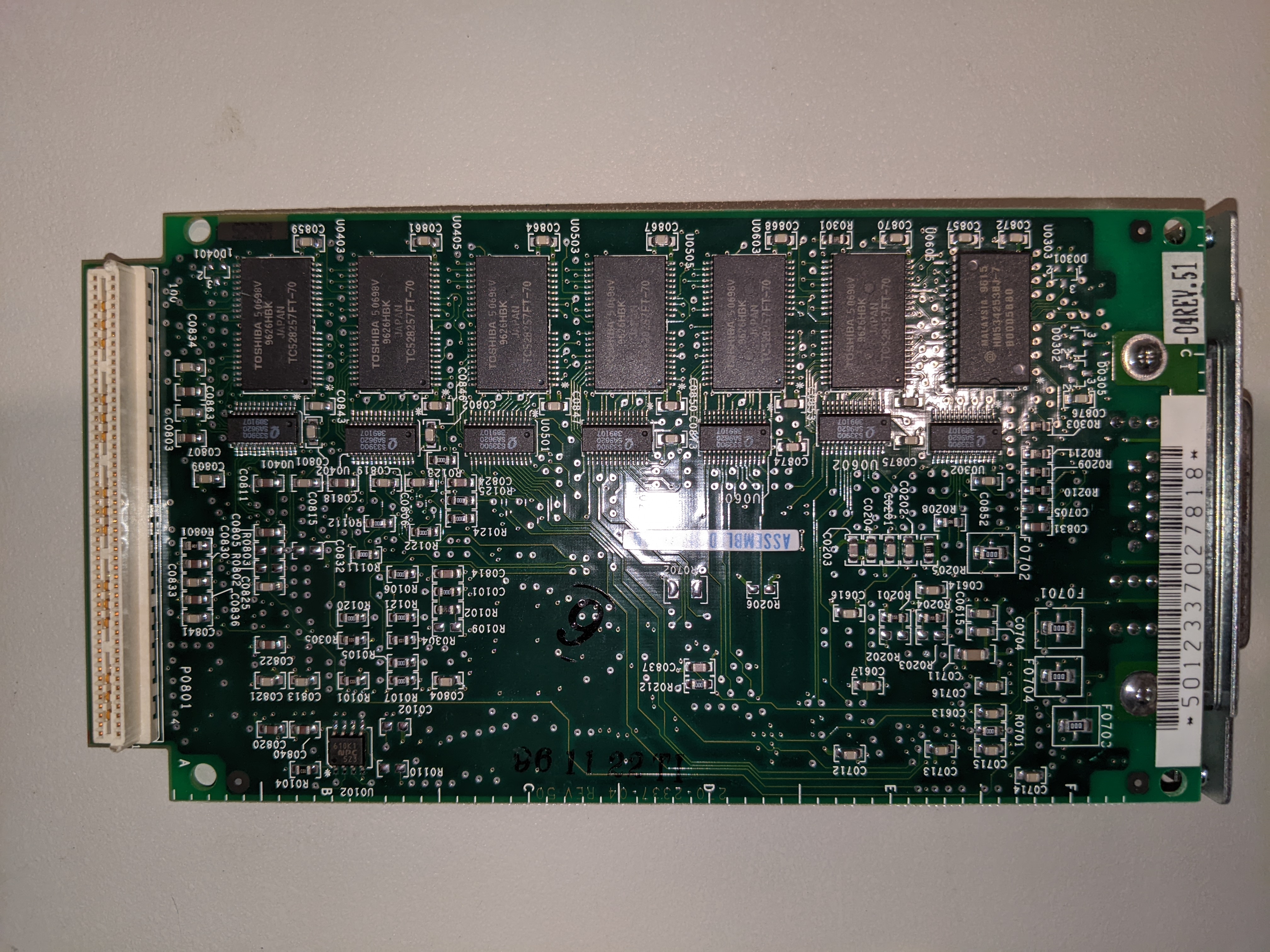

	Underside

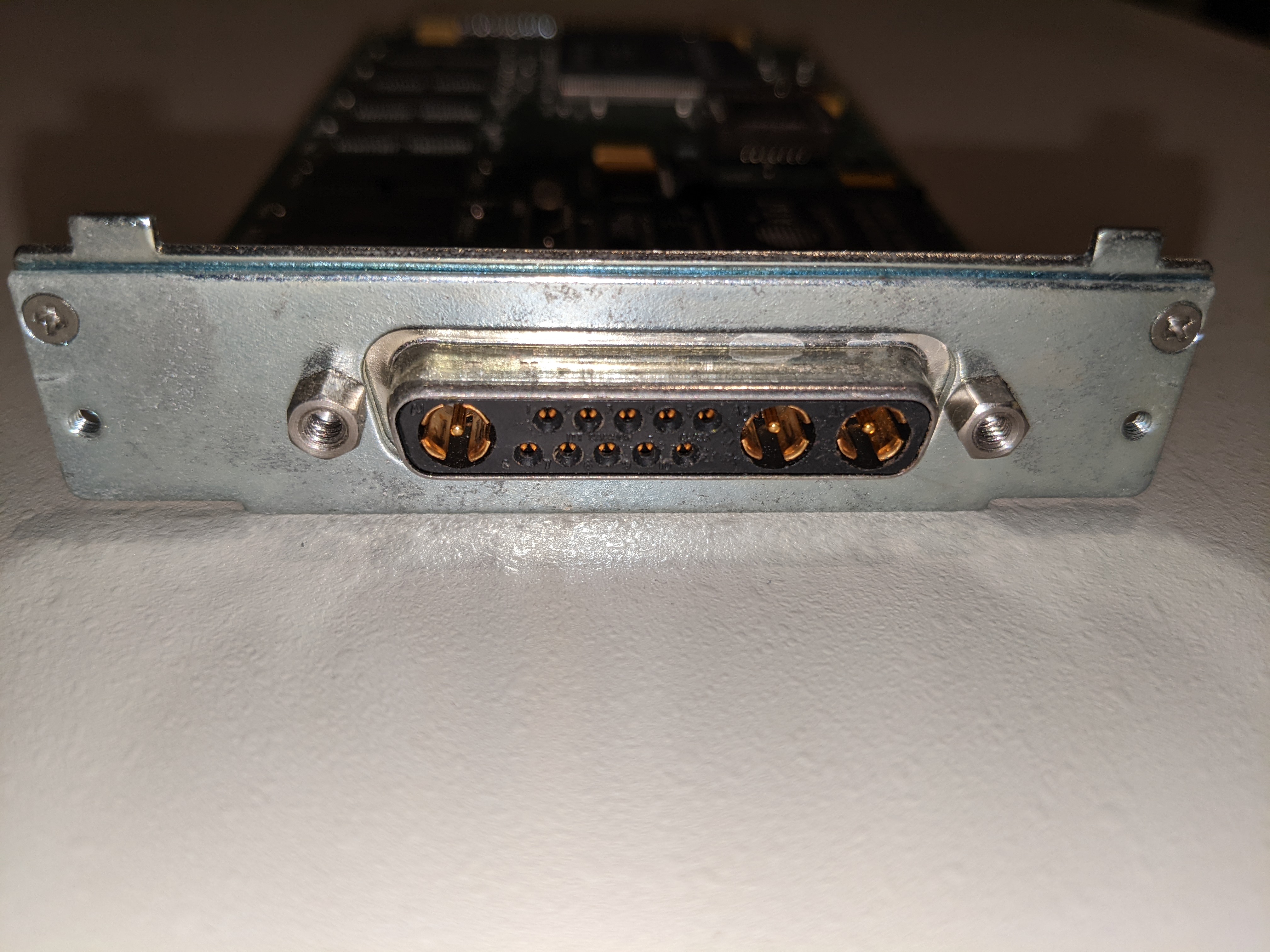

	Interface

Notable ICs & part numbers

• FCCID: GWVS24
• IC: Sun STP3035QFP
• Option: 323
• Option: 324
• Part: 501-2337 (Barcode starting with 5012337)
