PC "R"

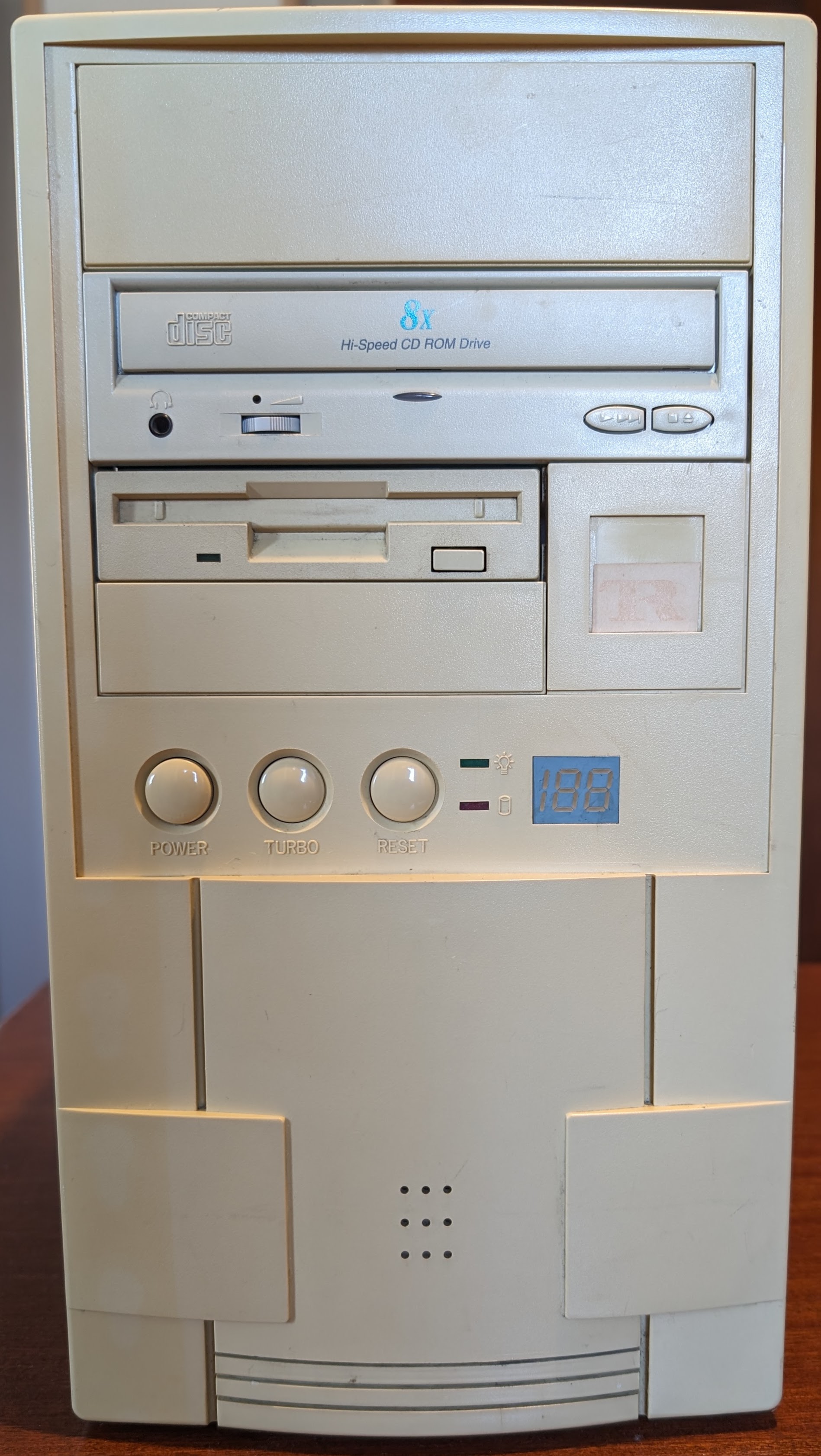

Curently named "R" for the faded system builder logo on the front (could be "TR"?), I've had this PC for long enough that I don't remember when I got it. Its previous owner was Pacific Aerospace and it originally had AutoCAD and a few other similar programs on it. Its final role appears to have been just a terminal services client as this was set to run on startup. It was extremely dusty when I acquired it.
Specifications
These are the specifications of the machine as received from its previous owner - I have not yet changed anything.
| Case | Baby-AT mid-tower, unknown manufacturer, unknown model |
|---|---|
| Power Supply | Falcon PE-230X 230W |
| CPU | Intel Pentium 133Mhz SY022 |

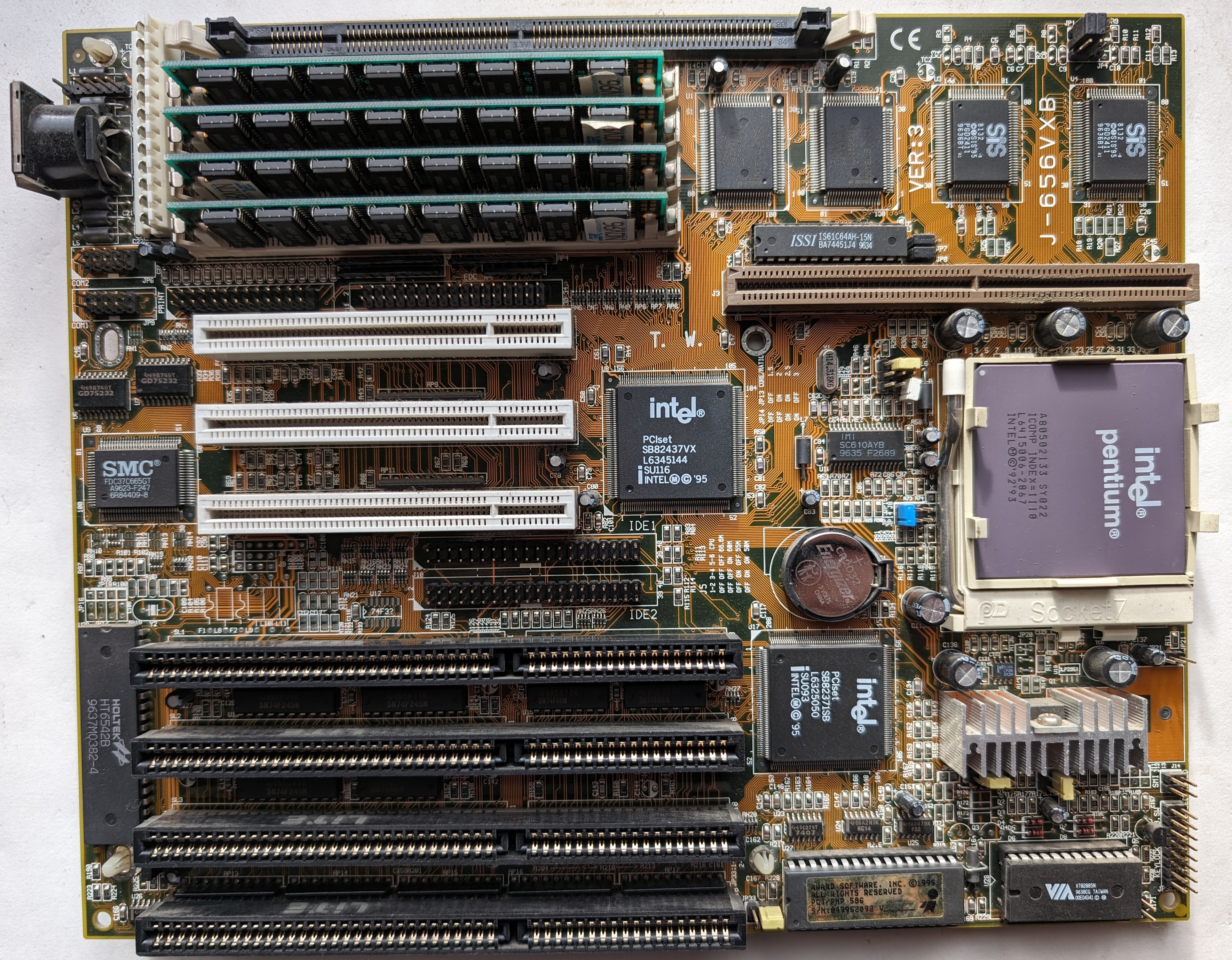

| Motherboard | Jetway J-656VXB VER:3 |
| RAM | 64MB |

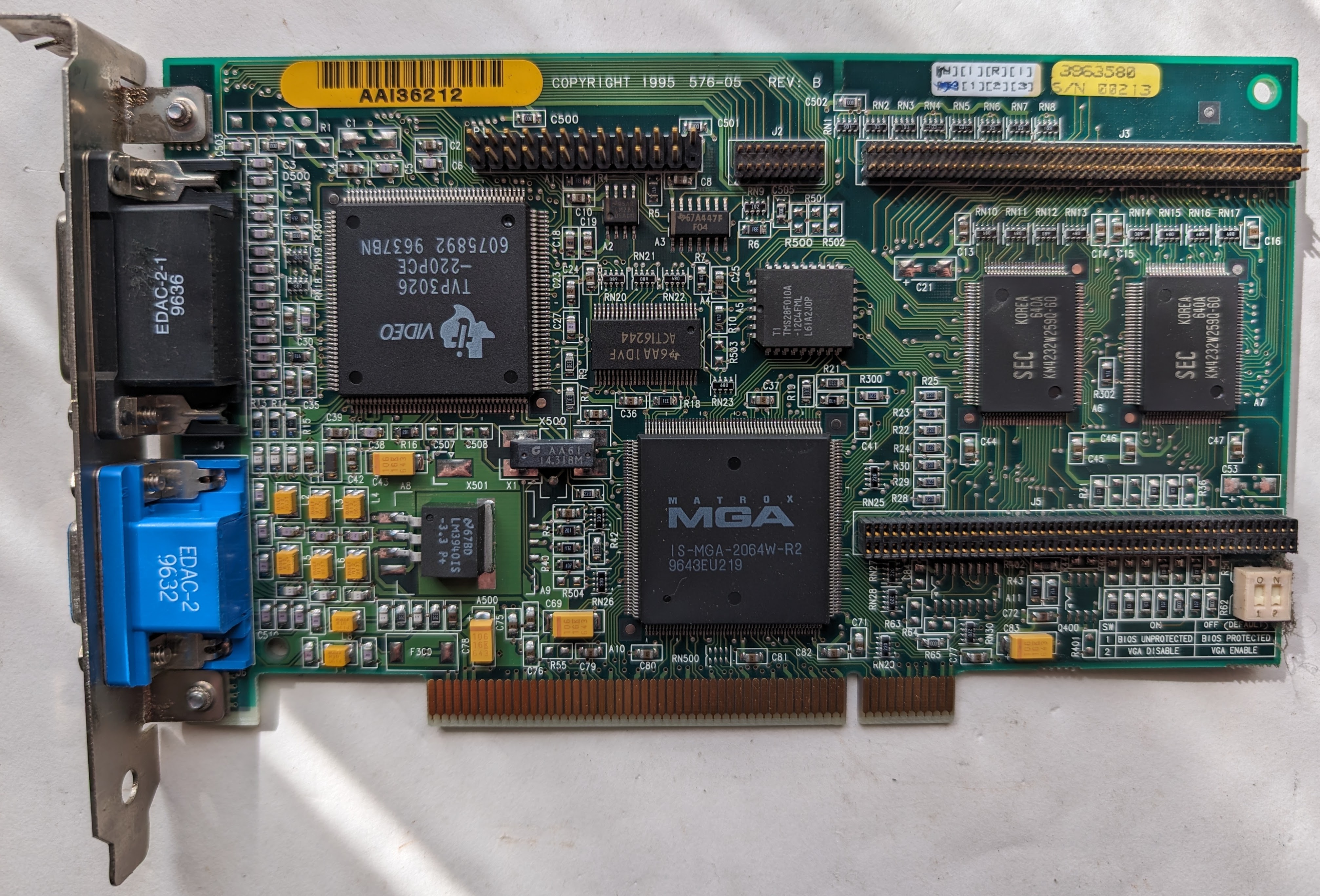

| VGA | Matrox Millennium 2MB MGA-MIl/2/FE |

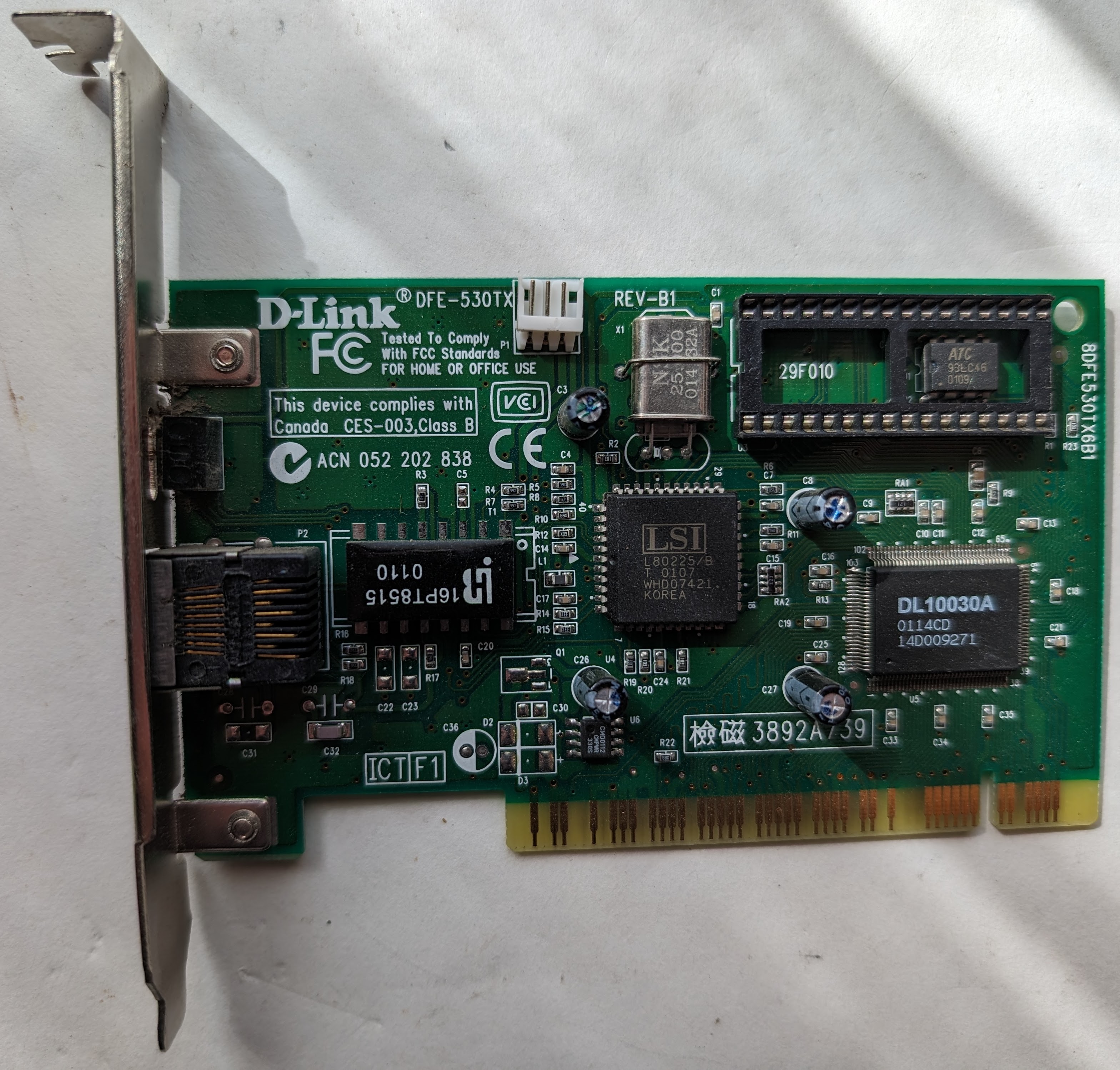

| Network | D-Link DFE-530TX 10/100 PCI |
| Audio | none |
| Drives |
6.4GB Quantum Bigfoot hard-disk Samsung CD-Master 8E 8x CD-ROM (faulty - disc doesn't spin) Panasonic JU-254A606P 3.5" floppy drive (faulty - POST error and unhappy noises) |

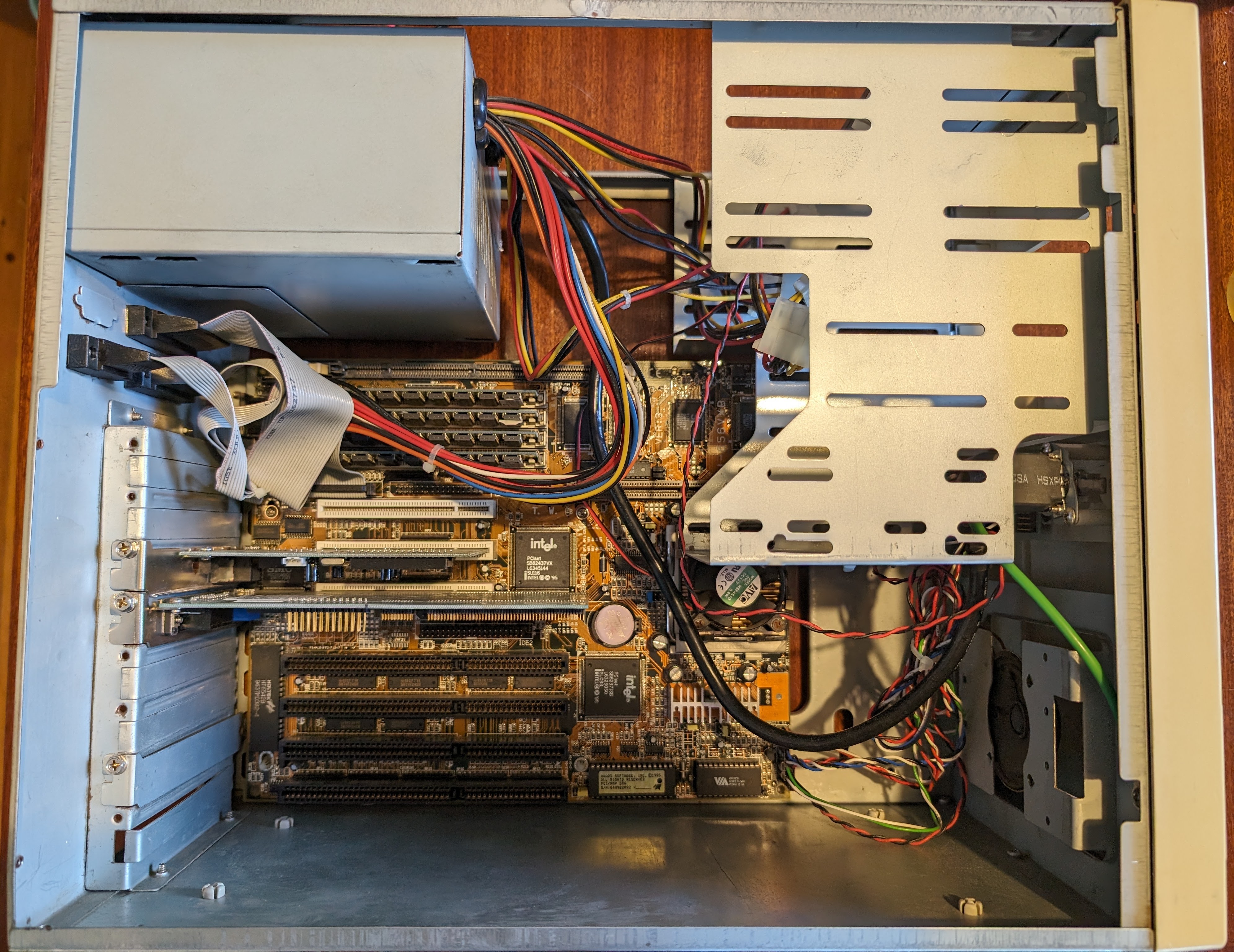

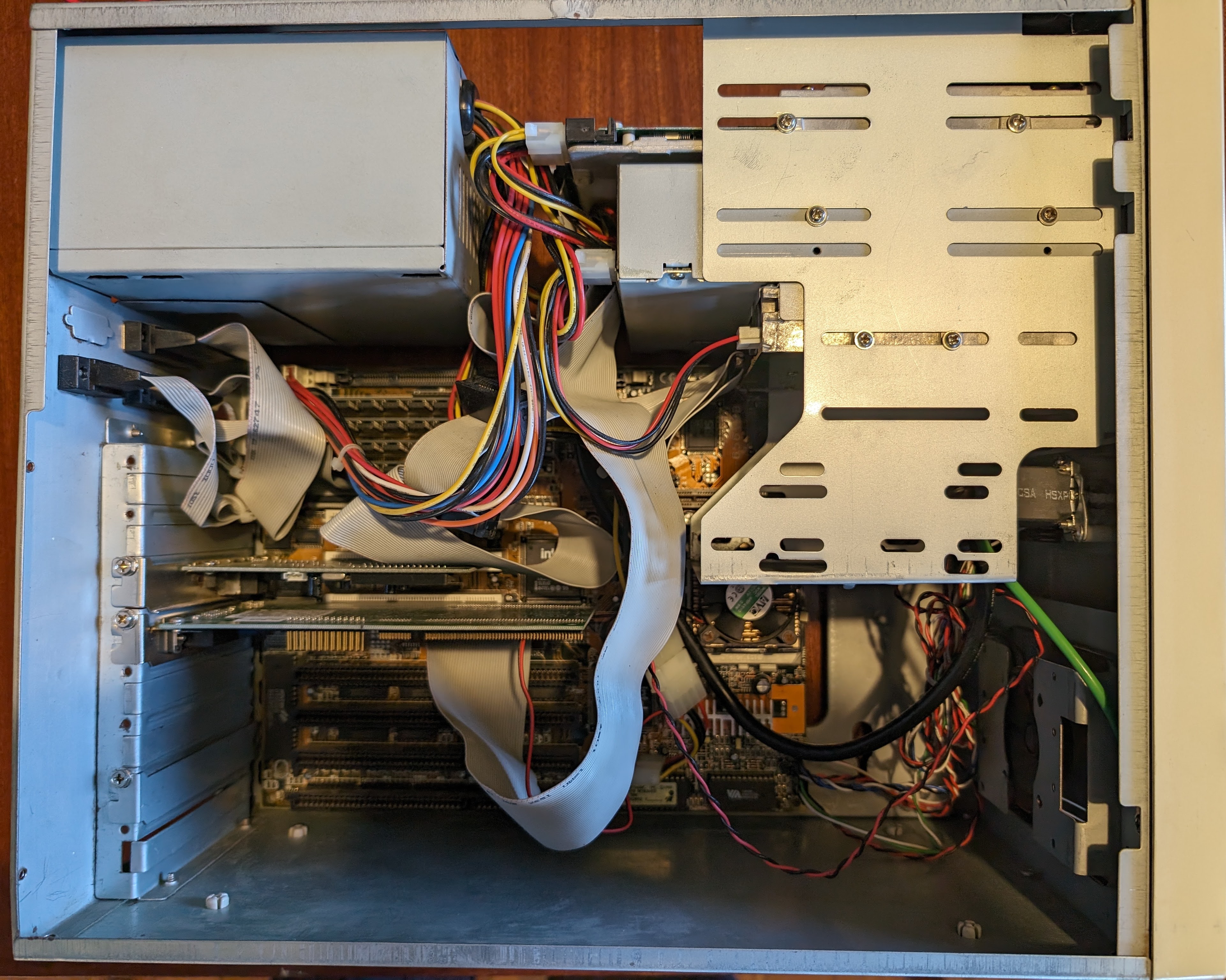

This machine currently has no allocated task so it lives in storage. It was pulled from storage in March 2022, given a fresh battery, and to learn about Network Booting Windows 95 which requires an ISA network card which I couldn't successfully emulate in 86Box or VirtualBox. In April 2024 it was completely dismantled (including PSU, CD-ROM and floppy drive), cleaned, drives lubricated, inventoried as COMP-003, reassembled and returned to storage.
Current Issues
This machine has the following issues waiting to be resolved:
- It needs a sound card
- CD-ROM drive needs repair or replacement (disc doesn't spin, everything else seems fine - perhaps needs a recap; there are many aluminium electrolytics on its circuit board)
- Floppy drive needs to be repaired or replaced - possibly a complete dismantling and lubricating would fix it.
- CPU cooler looks like somthing that belongs on a 486, the plastic retaining clip is broken, and the fan is noisy. The whole lot needs replacing.
- The speed display on the front is showing 120Mhz rather than the correct 133Mhz
- I don't entirely like the PSU. It seems to work OK (voltages are reasonable), but it makes a short buzzing noise on power-off. It should probably be tested in isolation before use if the computer hasn't been powered on for a while.
Inventory Data
This is a subset of the hardware inventory record for this computer. It may be more up-to-date than the rest of this page.
| Computer: | COMP-0003 Manufacturer: "R", Model: Unknown, Name: "R" | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Last Inspected | 2024-04-06 | Working? | True | Battery Changed: | 2022-03-06 | |||||||||
| Notes: | 2024-04-06: Stripped for cleaning, reassembled and tested. FDD and CD-ROM failed, everything else ok. 2022-03: Was used for testing Windows 95 network boot. Formerly owned by Pacific Aerospace. Screen shows 120, should be 133. |
|||||||||||||
| Case: | CASE-0002 Manufacturer: Unknown, Model: UNK-A | |||||||||||||
| PSU: | POWR-0004 Manufacturer: Falcon, Model: PE-230X, Rating: 230W | |||||||||||||
| Motherboard: | MOBO-0026 Manufacturer: Jetway, Model: J-656VXB, on The Retro Web | |||||||||||||
| Cards: |
|
|||||||||||||
| Drives: |
|
|||||||||||||
