NetWare 4.1

Patches and notes about Netware 4.10.

Contents

• NetWare for OS/2
• Virtualising NetWare 4.10 under KVM
• Useful Information
• Add-On Products
• Minimum Patches
• Additional Patches

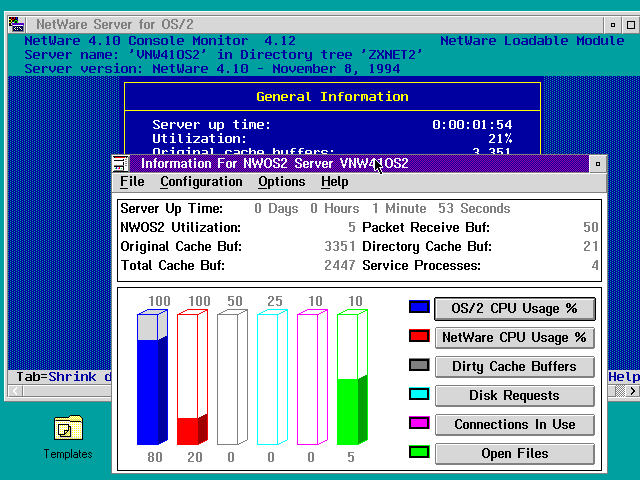

NetWare for OS/2

NetWare 4.10 is the first version to bundle NetWare for OS/2 for no extra cost; previously it was available only as a paid-for add-on to NetWare 4.01. Its also the second-to-last version to support running on OS/2 (NetWare 4.11 was the last). It can be installed from the regular NetWare 4.10 Operating System CD and appears run fine on OS/2 Warp 3 under VirtualBox.

Screenshots: Installing NetWare for OS/2 v4.1 on OS/2 Warp 3

Virtualisation - Linux-KVM

It runs under KVM! To see the full installation process documented with an excruciatingly large number of screenshots, see the Installing NetWare 4.1 in KVM page. There are also screenshots showing a few optional post-insall steps:

• Installing the Documentation
• Installing all of the important available updates - fairly important to do this before using the OS2 or MAC namespaces.
• Merging the NetWare 4.10 NDS tree into an existing NetWare 4.11 NDS Tree resulting in one NDS tree containing two NetWare servers, one 4.11 and one 4.10.

The process is much the same as for NetWare 4.11, just with less hardware autodetection:

• Use the VNC display type with libvirt, not spice
• This driver disk should work with the PCnet-PCI NIC provided by qemu. The .LDI file has been customised to install the bits of the ODI 3.3 update the driver needs to allow it to be installed during operating system installation. You'll need to install the 410PT8B patch as well as the full ODI 3.3 update later on to make sure everything is properly setup.
• The IDE.DSK driver doesn't seem to work (no drives found) - use IDEATA.HAM instead. This won't appear in the driver list if you do a simple installation but you can still choose it via the Install and unlisted driver option and pointing it at D:\nw410\diskdrv (where D: is your CD-ROM drive)
• NetWare 4.10 won't see an IDE CD-ROM drive without updates. Until updates are installed you'll have to use a DOS CD-ROM driver
• The OS2 and MAC namespaces (required for long filename support) must not be used without installing updates first (the new version of the namespace mouldes is not backwards compatible with the old version).

Useful Information

• Whats New in NetWare 4.1 - Novell Research AppNote, January 1995

Add-On Products

• NetWare/IP v2.1-2.2B was made available as a free download.

Minimum Patches

These are the minimum patches Novell recommends applying as a baseline (as of 1 March 2000). Its probably best to apply them in order starting with the oldest.

Date	Download	Readme	Notes
1995-05-03	PU4X03.EXE	Readme	Print Utilities
1995-07-28	PS4X03.EXE	Readme	Print Server
1995-10-03	INS224.EXE	Readme	INSTALL.NLM v2.24
1996-04-18	SBACK6.EXE	Readme	SBACKUP.NLM and supporting files
1996-07-22	SRVMN1.EXE	Readme	SERVMAN.NLM
1996-10-29	MPR31B.EXE	Readme	NetWare MultiProtocol Router
1997-01-16	SMSUP6.EXE	Readme	SMS Functions Updated
1997-04-25	MACPT3D.EXE	Readme	NetWare for Macintosh
1997-10-06	NAM41c.EXE	Readme	Macintosh and OS/2 Name Space
1998-05-22	410PT8B.EXE	Readme	NetWare 4.10 Patch Kit
1998-09-23	IPX660.EXE	Readme	IPX Upgrade for NetWare 3.1x, 4.1x
1998-11-21	LIBUPI.EXE	Readme	Updated modular CLIB and DSAPI
1999-06-08	NWPAUP1A.EXE	Readme	CDROM.NLM and supporting files
1999-07-24	ODI33G.EXE	Readme	ODI v 3.3 update files (G)
1999-12-13	DS410Q.EXE	Readme	Novell Directory Services
1999-12-30	STRTL8A.EXE	Readme	SPXS Update

Additional Patches

These were the other patches up on the Novell support site in February 2002 (and so not necessarily considered obsolete). You may wish to browse the readme files to see if there are any worth applying. Some of the later ones certainly will be more recent than whats on the minimum patch list above.

Date	Download	Readme	Notes
1994-09-01	saa012.exe	Readme	SAA Windows Client Update
1995-05-12	p2scsi.exe	Readme	New PS2SCSI.DSK for 4.xx
1995-06-09	instll.exe	Readme	Updated INSTALL.NLM and DSI.NLM
1995-08-05	ngwadm.exe	Readme	NWAdmin Integration Snapin .DLL v2
1995-08-17	daishm.exe	Readme	4.10 sftiii shims to support dai calls
1995-08-29	41ndir.exe	Readme	NDIR for large drives
1995-10-11	mprx25.exe	Readme	MPRX25.EXE: X25TSM.NLM Update
1995-12-01	ipxspx.exe	Readme	IPX/SPX Sockets (HEX)
1996-03-12	netusr.exe	Readme	NETUSER Capture Defaults to User Hold
1996-04-29	41filr.exe	Readme	Filer.exe v4.21 (950331) PTF for NetWare v4.x
1996-05-25	setdoc.exe	Readme	Installing and Configuring SETUPDOC
1996-05-29	mactsa.bin	Readme
1996-07-09	41rtr2.exe	Readme	41RTR2.EXE;NetWare 4.1 SFTIII Protocol Update
1996-07-23	mactsa.exe	Readme
1996-08-13	ngwaup.exe	Readme	NWAdmin Integration Snapin Update (v.3)
1996-08-21	tsa410.exe	Readme	410 TSA MODULE
1996-09	smt121.exe	Readme	SMT121.EXE - UPGRADE FOR SMPT 1.20
1996-10-21	landr9.exe	Readme	ODI 3.30 LAN Drivers & support modules
1996-11-08	srout4.exe	Readme
1996-11-26	os2u1.exe	Readme	OS/2 Utilities for NetWare v3.12 and v4.10
1996-12-17	actkey.exe	Readme	Upgrade Activation Key Program
1997-01-02	41migutl.exe	Readme
1997-01-07	nw4dfs.exe	Readme
1997-01-10	adm4113x.exe	Readme	ADM4113X.EXE - Automatic Install of NWADMN3X
1997-01-10	adm41195.exe	Readme	ADM41195.EXE - Automatic Install of NWADMN95
1997-01-10	adm411nt.exe	Readme	ADM411NT.EXE - Automatic Install of NWADMN32
1997-05-02	dsright2.exe	Readme
1997-07-14	tabnd2a.exe	Readme	Abend Troubleshooting Guide
1997-07-17	wkstrk.exe	Readme	trouble shooting fileserver cannot be found
1997-07-22	upsnlm.exe	Readme	UPSNLM.EXE; UPS.NLM for SFTIII, 3.12 and 4.0x
1997-07-30	nsync1.exe	Readme	NSYNC1.EXE; Net Sync update files
1997-07-30	odiwan1.exe	Readme	ODIWAN1: ODI WAN update to support ODI 3.31
1997-09-15	audit410.exe	Readme	Auditcon Report Not Including Event Dates
1997-09-15	log410a.exe	Readme	NetWare v4.1 LOGIN.EXE fixes
1997-09-15	ncpy410a.exe	Readme	NetWare v4.10 NCOPY.EXE for DOS fixes
1997-11-24	map410b.exe	Readme	MAP410b.EXE;Map root search drives
1997-11-24	41rem1.exe	Readme
1997-11-24	devmon.exe	Readme	DEVMON for SFT III v4.10
1998-04-06	4xmigr2.exe	Readme	Envoy Document on Migration Solutions
1998-05-04	tback3.exe	Readme	TBACK3.EXE; TBACKUP Utility
1998-05-04	tcopy2.exe	Readme	TCOPY2.EXE; Copies Trustee Assignments
1998-05-14	landrv.exe	Readme	LANDRV.EXE - Third Party Lan Drivers
1998-08-19	cdup5a.exe	Readme	CDROM.NLM and supporting files.
1998-08-21	highutl1.exe	Readme	Troubleshooting High Utilization for NW 4
1998-009-01	tbox7.exe	Readme	Tools for a NetWare Server v1.09d
1998-10-05	rplkt5.exe	Readme	RPLKT5.EXE; RPL File Updates
1998-10-14	cfgrd6b.exe	Readme	CFGRD6B.EXE - NetWare Config Reader Ver 2.67
1998-10-26	nt411p1.exe	Readme	NT411P1.EXE IntraNetWare NT Client Updates
1998-11-02	timefx.exe	Readme	TIME RESTRICTIONS and Day Light Savings
1998-11-10	dsdiag1.exe	Readme	NDS Diagnostic Utility
1998-11-19	ntprint.exe	Readme	NPRINTER for NT
1998-12-02	drvspc.exe	Readme	ODI Driver Specification Utility
1999-03-16	hstdev.exe	Readme	PSERVER.NLM Host Device Change Utility
1999-03-23	nal201p2.exe	Readme	NAL201P2.EXE; NAL 2.01 Patches
1999-07-09	accupg1b.exe	Readme	Accelerated Upgrade v1.10
1999-08-25	410y2kp2.exe	Readme	NetWare 4.10 Year 2000 Fixes
1999-12-08	clibaux1.exe	Readme	Clibaux.nlm CLIB enhancement module
2000-01-04	nlsty2k.exe	Readme	Updated NLIST.EXE
2000-01-07	cron5.exe	Readme	CRON.NLM Server Utility v1.7
2000-02-23	libupj4.exe	Readme	Updated CLIB and DSAPI v4.11r libraries
2000-06-06	nam41d.exe	Readme	NAM41c.EXE; MAC.NAM, OS2.NAM for NW 4.10

Disclaimer & Comments

I'm not a netware expert, don't have any of those fancy novell certifications and have never administred a netware network; I've just played with it at home occasionally since 2004 or so. Email me if you've got any suggestsions or corrections for this page or any extra information you think is worth including here. My address is david at this websites domain name (without the www bit of course).
