Screenshots: IntraNetWare Client32 for Windows 3.11 (version 2.11)
I've got NetWare 4.11 running in a VM (excessive screenshots). Now I'm installing the client provided on the IntraNetWare 4.11 CD.
Contents
Tools
Things you'll need to follow along:
- A VM with:
- DOS 6.22 and Windows for Worgroups 3.11
- Bridged networking (IPX won't get through NAT)
- A NIC thats setup in Windows (I'm using PCnet-PCI II)
- The IntraNetWare 4.11 CD-ROM. You can also grab this version (2.11) from the DOS/16bit Windows 32bit Netware Clients page.
Installing the Client

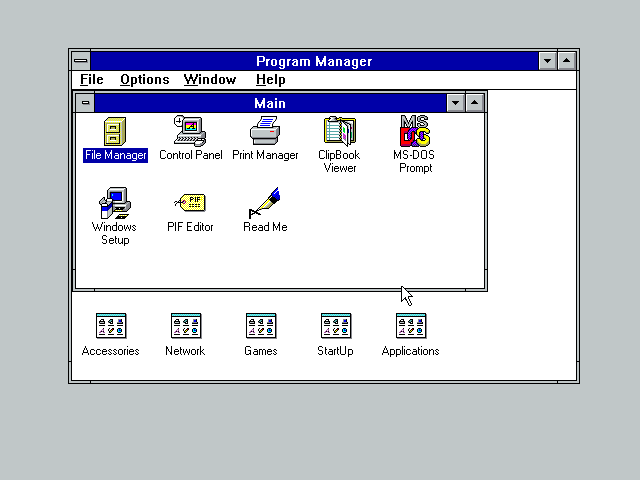

We're starting from a clean install of MS-DOS 6.22 and Windows for Workgroups 3.11 with the NetWare 4.11 CD in the drive.

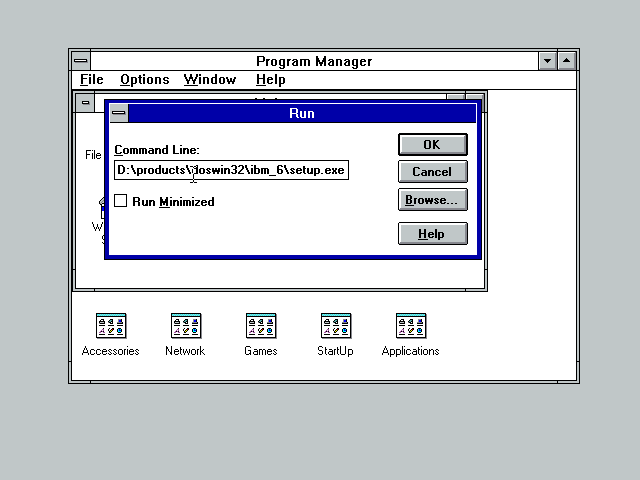

The installer on the CD is \products\doswin32\ibm_6\setup.exe

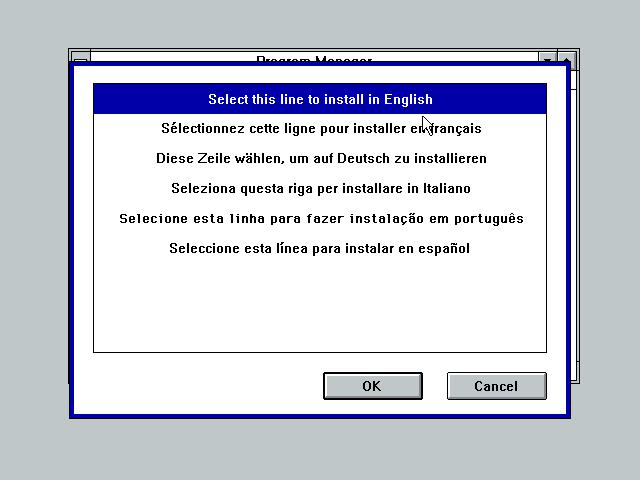

Pick a language.

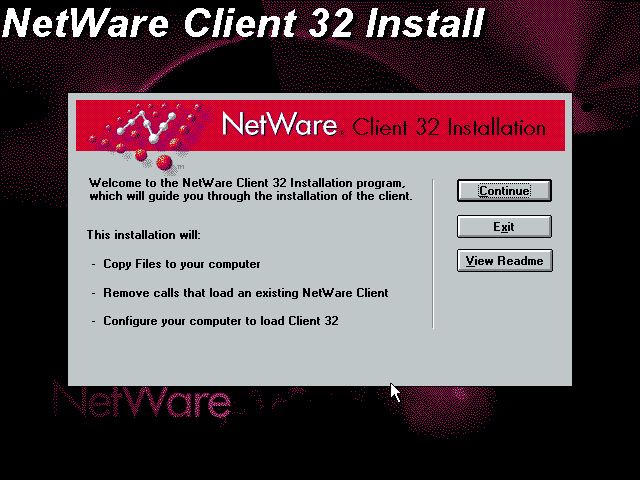

Lets continue! The readme is dated 22/08/96.

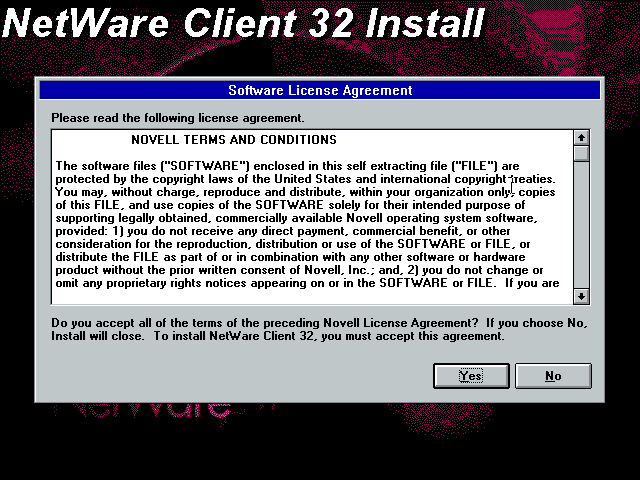

Yeah, I suppose I agree.

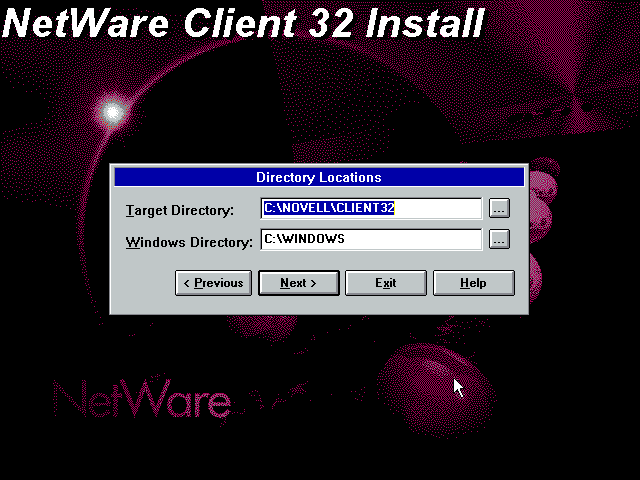

Defaults look good.

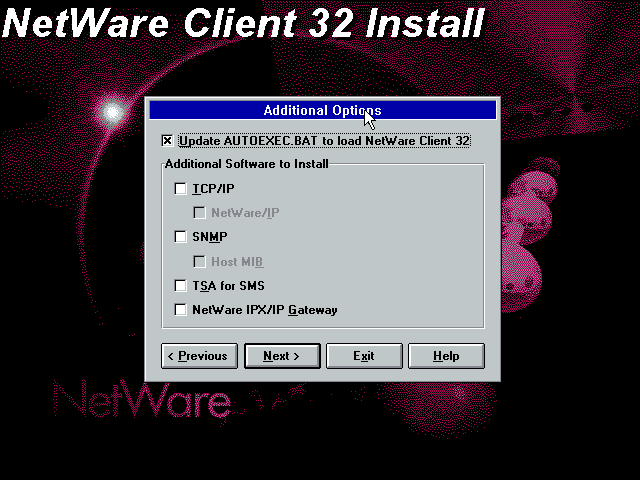

More questions!

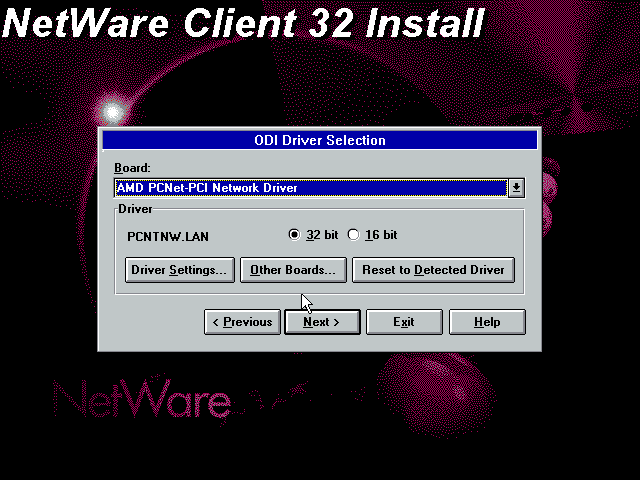

This driver ought to work for the pcnet II
Lets just go with the defaults for now.

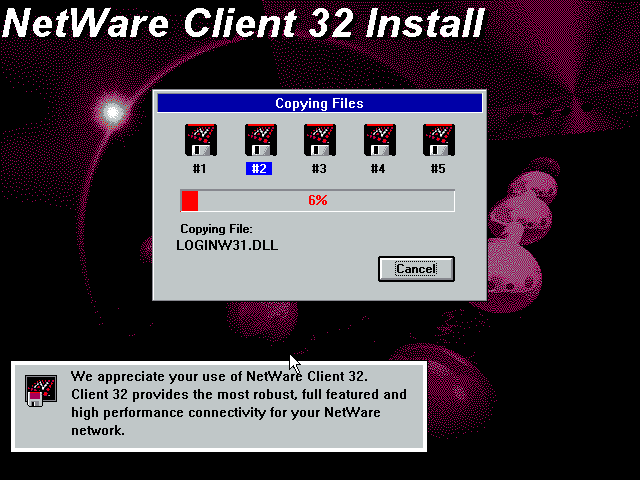

Copying files...
Lets reboot!
Success! We're attached to the server via IPX!

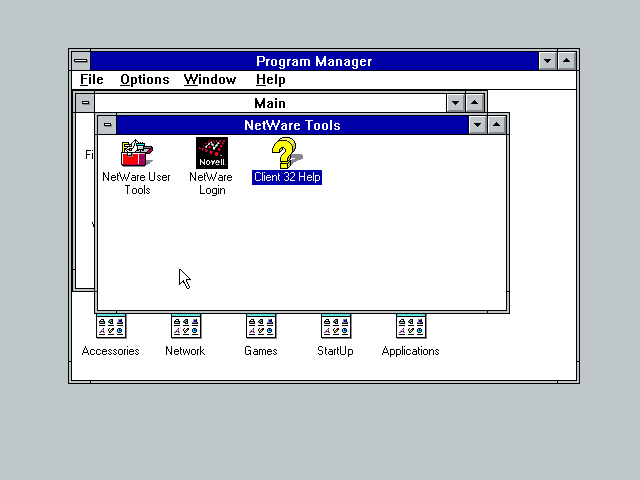

Some new netware stuff. Lets login...

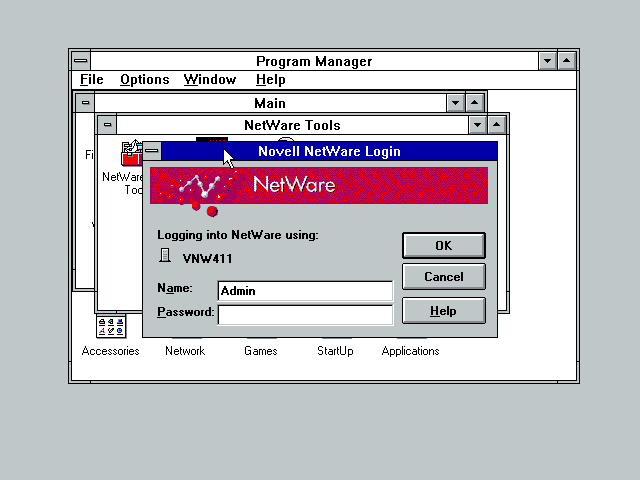

The login screen
Looks like everything is working properly! Looks like the installation is done!
Screenshots
Now that its installed and working, lets have a look around!

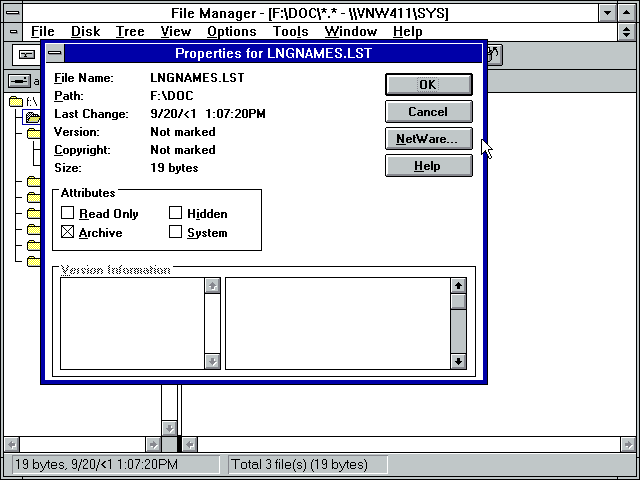

File properties window has a NetWare button if the file is on a NetWare volume

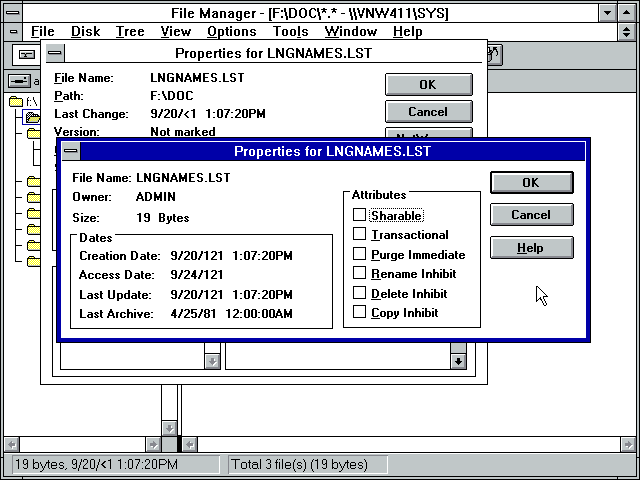

The NetWare button brings up additional NetWare properties for the file.

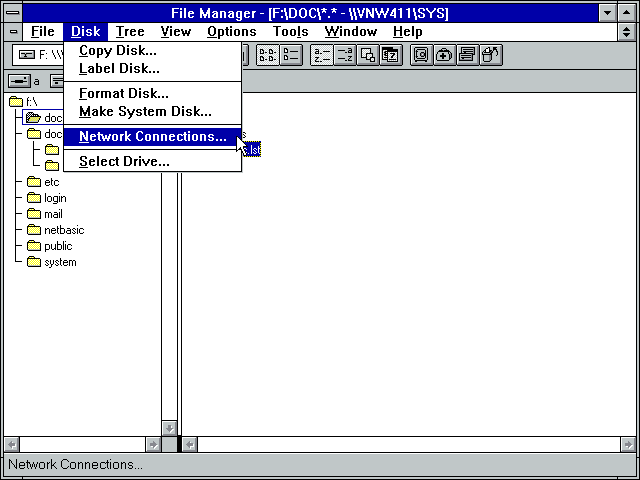

This menu item in File Manager opens NetWare User Tools
Netware User Tools

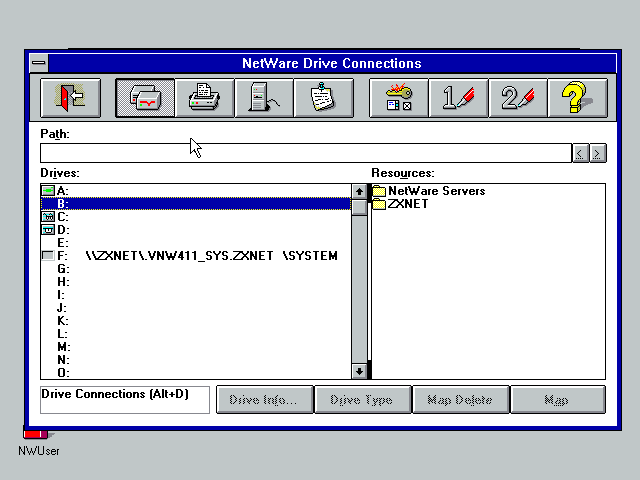

Drive Connections

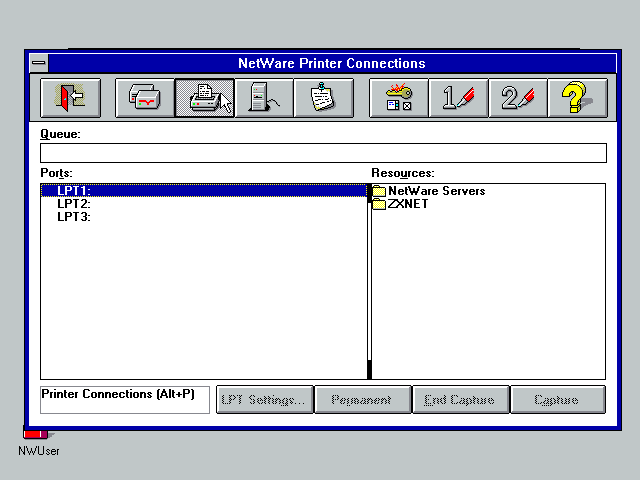

Printer Connections

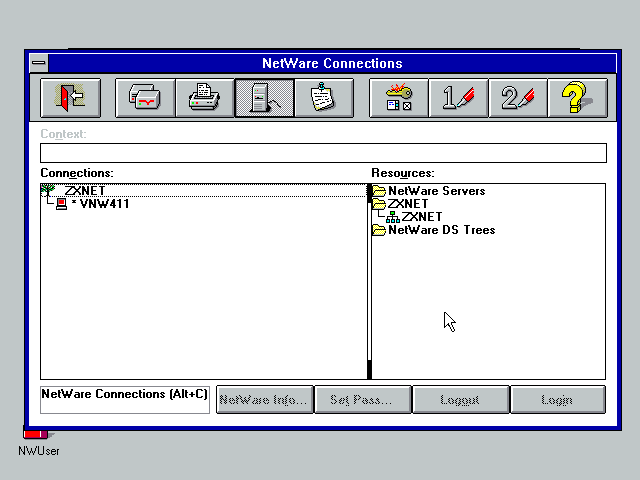

NetWare Connections
Send Messages

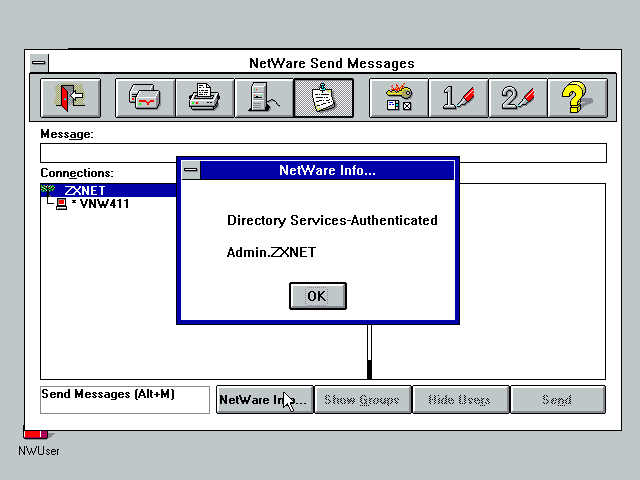

That NetWare Info... button
NetWare Settings (NetWare User Tools)
This is the fourth button from the right with the key

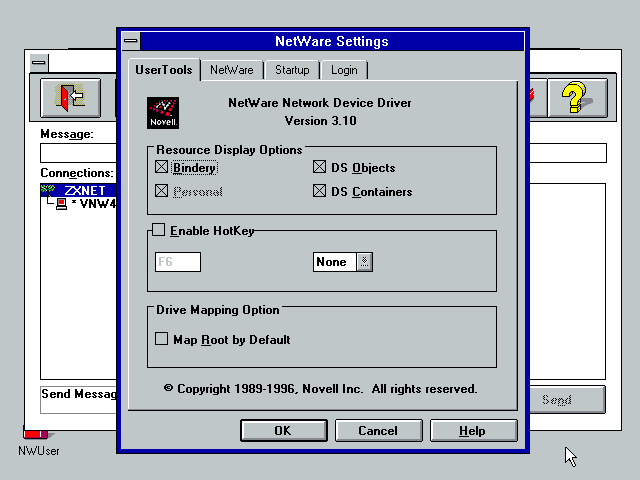

User Tools

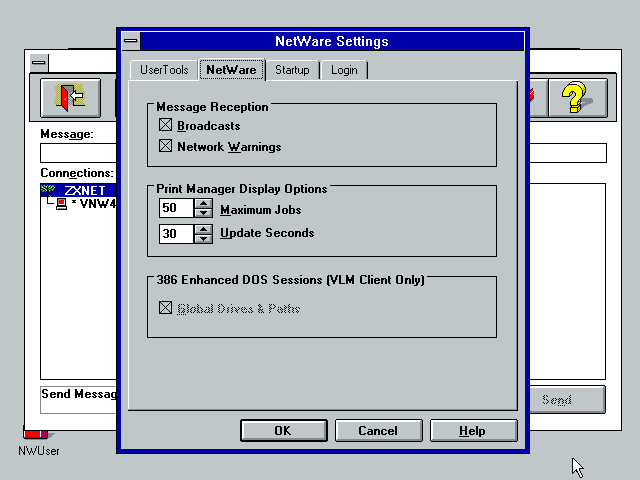

NetWare tab

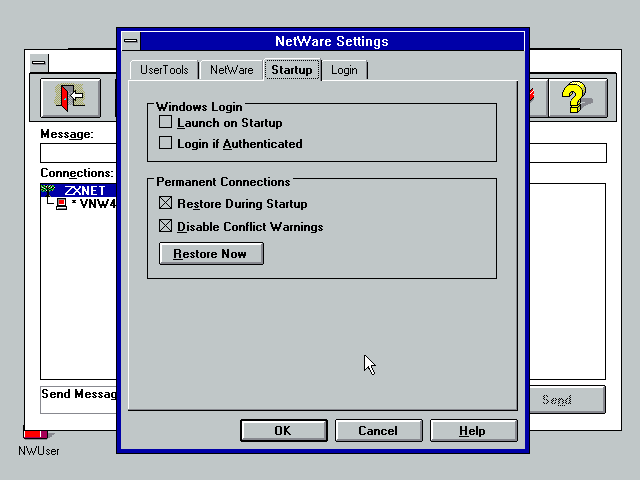

Startup tab. Looks like this is where we'd make the login screen come up when we start windows (Launch on Startup). The Login if Authenticated checkbox looks like it makes you login on startup even if you already logged in from DOS.

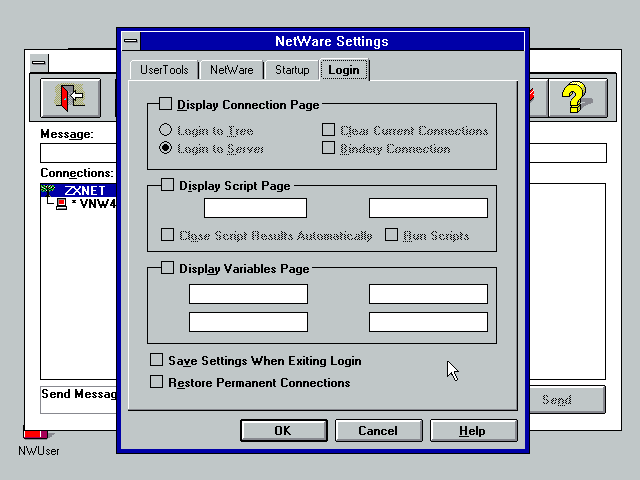

Login tab

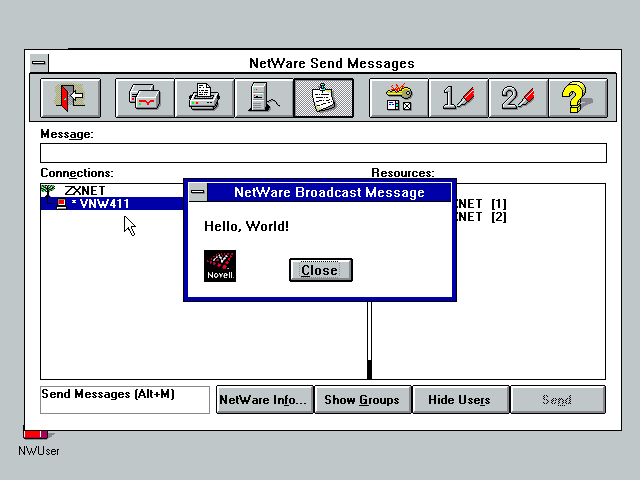

I send a broadcast message from the server console: send Hello, World! and this is the result:

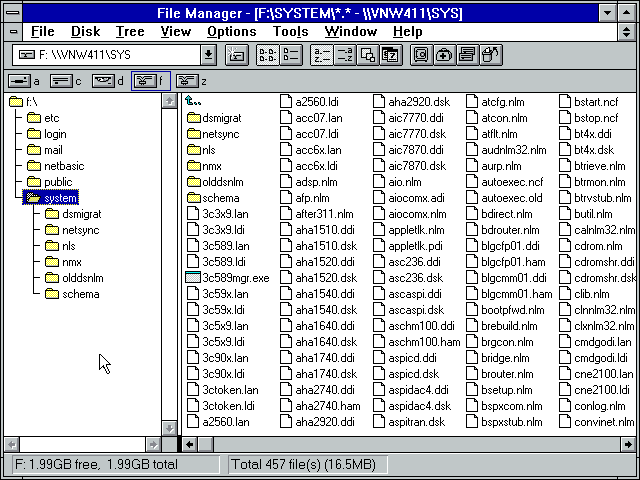

Looks like we get the entire SYS volume mapped to F drive

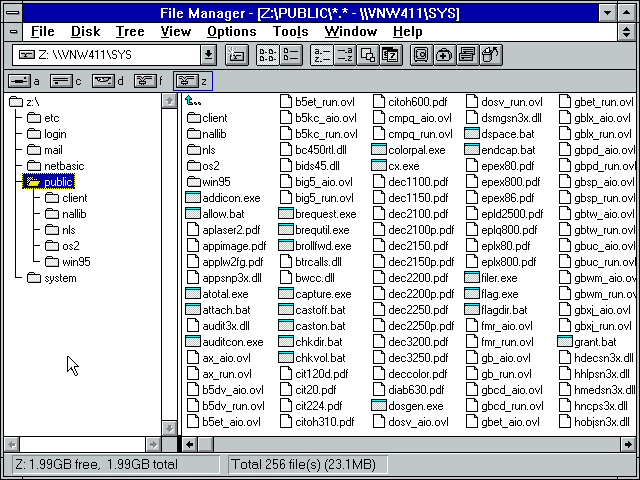

Z drive seems to be the same

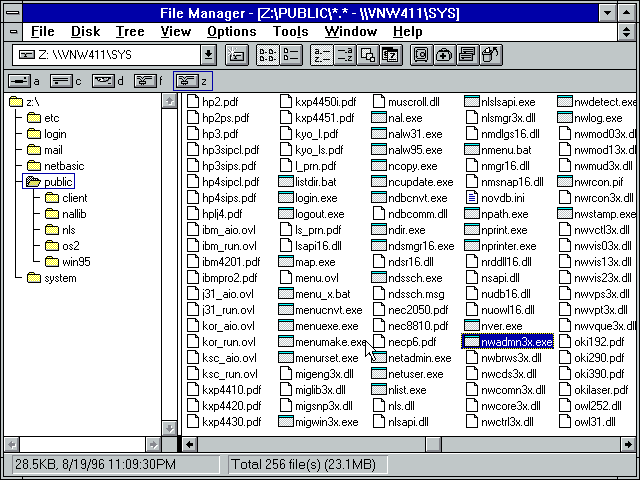

Found the 16bit version of NetWare Administrator!

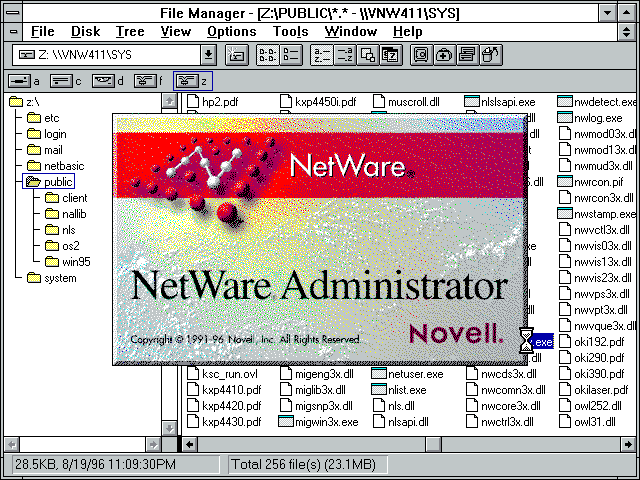

NetWare Administrator Splash Screen

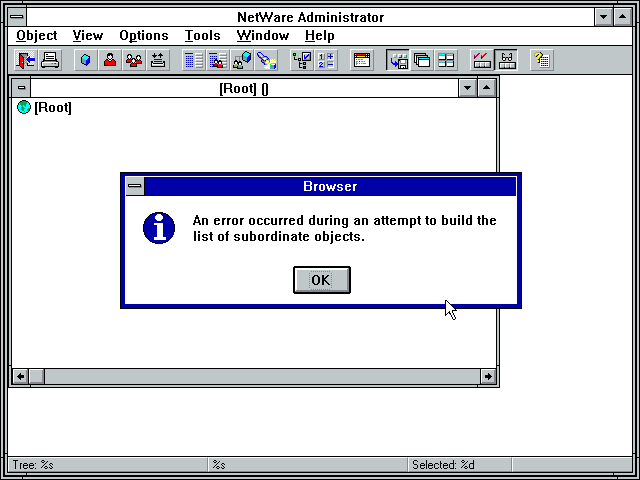

Not sure what this means

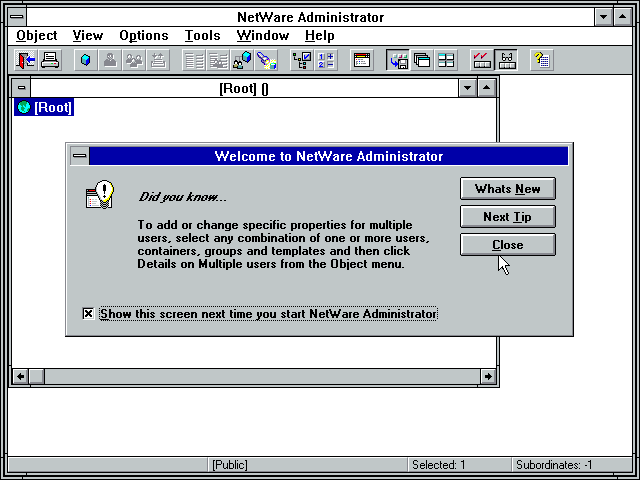

Did you know...

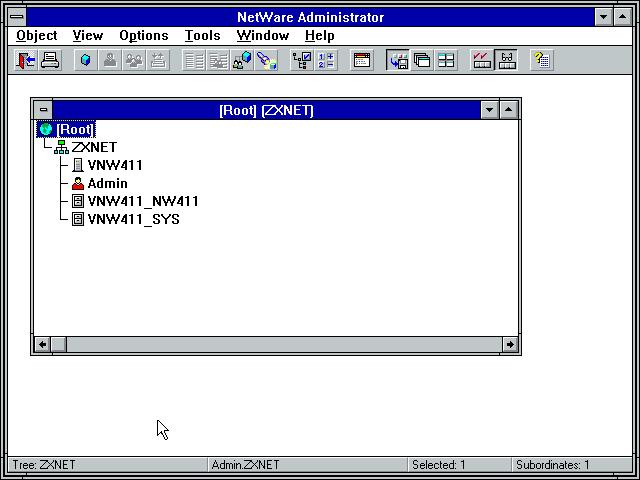

The NDS tree! Pretty empty (this is a fresh server install). This is where you setup users, etc.
Logging in from DOS

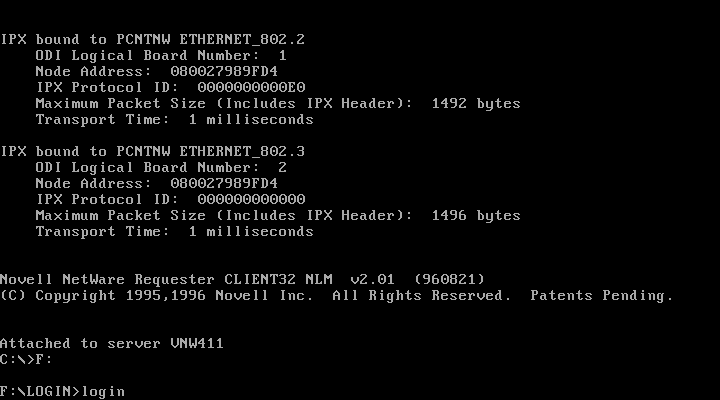

The login command lives on F drive by default. As you can see the default directory for F drive is already the login directory so you can just type login to continue

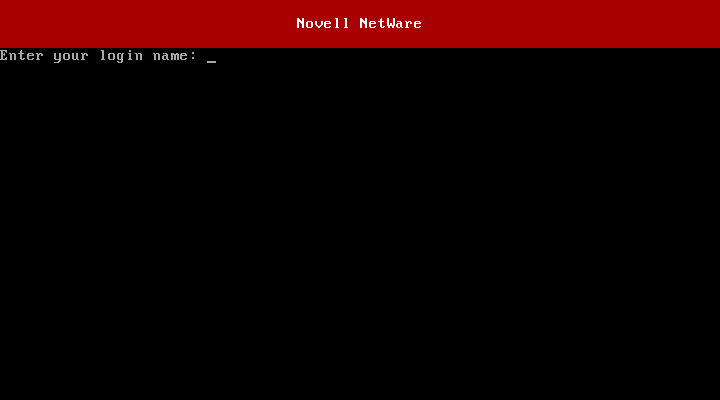

Enter a username...

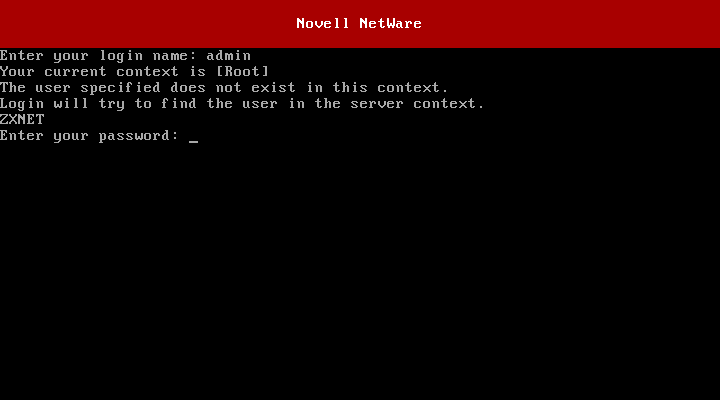

Enter a password...

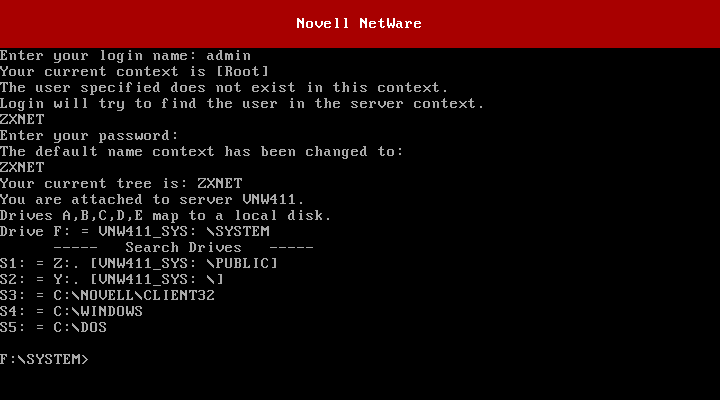

And we're logged in!

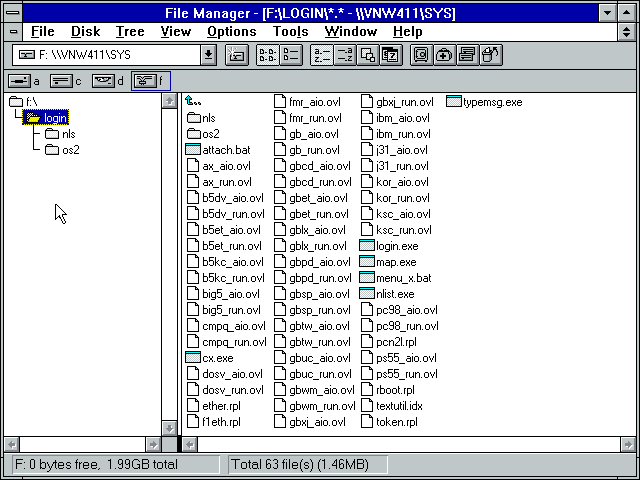

This is what F drive looks like when not logged in
Disclaimer & Comments
I'm not a netware expert, don't have any of those fancy novell certifications and have never administred a netware network; I've just played with it at home occasionally since 2004 or so. Email me if you've got any suggestsions or corrections for this page or any extra information you think is worth including here. My address is david at this websites domain name (without the www bit of course).
